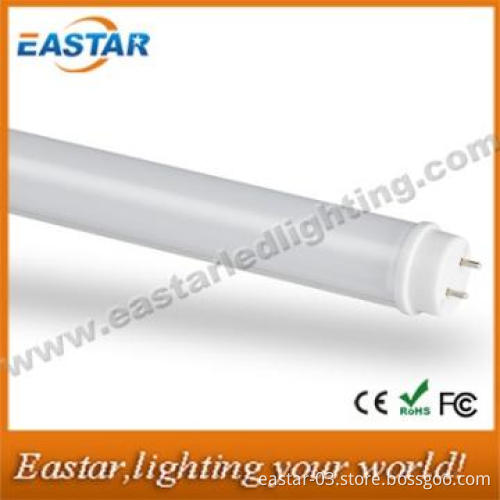

Super Bright 3528 SMD LED Tube Lights 1200mm 18W
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Item | led tube lights |
|---|---|
| Color | white |
| LED quantity | 288 |
| Efficiency | 85% |
| Material | al+pc |
| Life | 50000h |
| Package | Yes |
| Color Tones | Warm Color |
| Length | 120cm |
| Power | 18w |
| Illuminant | LEDs |
| Voltage | 110V |
| Light Source Chip | CREE |
Detail Description
super bright 3528 smd led tube lights 1200mm 18watt
As a professional manufacturer of T8 LED Tube, we have many kinds of T8 LED Tubelights for choosing. Advantages of our T8 LED Tube are no RF interference, free maintenance, easy installation, low power consumption, high intensity, and long lifetime.
T8 LED Tube is designed to work with conventional fluorescent fixtures. To replace the short lived fluorescent lamps that are typically used in interior lighting, T8 LED Tube can be used to retrofit existing fluorescent installations in all types of applications.
Name: T8 LED Tube (1200mm, 18W)
Model: ESD-ZRG-T8-1200-GSP18-A1 (transparent PC cover)
ESD-ZRG-T8-1200-GTP18-A1 (stripe PC cover)
ESD-ZRG-T8-1200-GDP18-A1 (frosted PC cover)
Specifications
1Total power consumption: 21W
2 LED consumption: 18W
3 Input voltage: AC90-250V, 50/60Hz
4 Power supply: built-in constant current
5 Lighting source: low power 3528/3014/5050 LEDs
6 LED quantity: 288pcs
7 Dimension: Φ30mm*1200mm
8 Material: aluminum PCB and housing & PC cover (transparent, stripe, frosted)
9 Lamp holder: G13
10 Luminous flux: 1500lm±10%(frosted)
11 Luminous efficiency: 70–80lm/W
12 Color temperature: 3000-3500K, 4500-6500 K, 6500-9000K
13 Viewing angle: ≤120 °
14 CRI: Ra﹥70
15 Working temperature: -20～40℃（-4～104 ° F）
16 Environment humidity:<95﹪
17 Working environment: indoor use (applicable for dry environment)
18 Protection rating: IP44
19 Life-span: 30,000 hours
20 Weight: 385g
21 Certification: CE, RoHS and UL pending
22 Warranty: 2 years
Features
1 Exquisite appearance
2 High quality light source. The attenuation of SMD LED light source is less than 3% by 3000hrs aging test under temperature 50 degrees celsius, high luminous efficiency of single LED.
3 Advanced constant current driver with short circuit protection, open circuit protection, overload protection, etc.
4 Superior raw materials. Made of high quality aluminum material, which helps to the heat dissipation and turn on delicate appearance
5 Professional thermal management. Adopts aluminum substrate tightly connected with aluminum housing by insulated glue and greatly reduce the heat dissipation
6 High temperature resistant housing for safety
7 Wide range voltage input
8 No UV or infra-red radiation, no mercury or lead, eco-friendly, no danger of broken glass
9 Low energy consumption, saves 60% power comparing conventional lights
10 No need for starter and ballasts, instant soft-start, no speckle, no flickering, no humming, no buzzing, no RF interference
11 Easy to install, replace T8/T10 conventional fluorescent light directly low maintenance cost. Lower costs by reducing re-lamp frequency, especially in difficult to reach areas that require lifts
12 Long life-span: life time 30,000hrs, 6 times longer than traditional fluorescent tubes
13 Different length available: 60cm/90cm/120cm/150cm/180cm/240cm
14 Strict quality control, lighting aging for 72 hours and complete inspection before shipping
15 Solid-state, high shock resistant, strong packaging, convenient to transportation
Application
T8 LED Tubecan be extensively applied to general lighting, such as mall, store, hotel, office, supermarket, commercial building, station, bus, warehouse, signage, residential, parking lot, home, restaurant , train, railway, subway station, bank, warehouse, exhibition gallery, library, closet, factory,cabinet, cupboard, kitchen,refrigeration unitsetc. Replace conventional fluorescent lamp or sodium lamp. Energy efficient, environmentally friendly
As a professional manufacturer of T8 LED Tube, we have many kinds of T8 LED Tubelights for choosing. Advantages of our T8 LED Tube are no RF interference, free maintenance, easy installation, low power consumption, high intensity, and long lifetime.
T8 LED Tube is designed to work with conventional fluorescent fixtures. To replace the short lived fluorescent lamps that are typically used in interior lighting, T8 LED Tube can be used to retrofit existing fluorescent installations in all types of applications.
Name: T8 LED Tube (1200mm, 18W)
Model: ESD-ZRG-T8-1200-GSP18-A1 (transparent PC cover)
ESD-ZRG-T8-1200-GTP18-A1 (stripe PC cover)
ESD-ZRG-T8-1200-GDP18-A1 (frosted PC cover)
Specifications
1Total power consumption: 21W
2 LED consumption: 18W
3 Input voltage: AC90-250V, 50/60Hz
4 Power supply: built-in constant current
5 Lighting source: low power 3528/3014/5050 LEDs
6 LED quantity: 288pcs
7 Dimension: Φ30mm*1200mm
8 Material: aluminum PCB and housing & PC cover (transparent, stripe, frosted)
9 Lamp holder: G13
10 Luminous flux: 1500lm±10%(frosted)
11 Luminous efficiency: 70–80lm/W
12 Color temperature: 3000-3500K, 4500-6500 K, 6500-9000K
13 Viewing angle: ≤120 °
14 CRI: Ra﹥70
15 Working temperature: -20～40℃（-4～104 ° F）
16 Environment humidity:<95﹪
17 Working environment: indoor use (applicable for dry environment)
18 Protection rating: IP44
19 Life-span: 30,000 hours
20 Weight: 385g
21 Certification: CE, RoHS and UL pending
22 Warranty: 2 years
Features
1 Exquisite appearance
2 High quality light source. The attenuation of SMD LED light source is less than 3% by 3000hrs aging test under temperature 50 degrees celsius, high luminous efficiency of single LED.
3 Advanced constant current driver with short circuit protection, open circuit protection, overload protection, etc.
4 Superior raw materials. Made of high quality aluminum material, which helps to the heat dissipation and turn on delicate appearance
5 Professional thermal management. Adopts aluminum substrate tightly connected with aluminum housing by insulated glue and greatly reduce the heat dissipation
6 High temperature resistant housing for safety
7 Wide range voltage input
8 No UV or infra-red radiation, no mercury or lead, eco-friendly, no danger of broken glass
9 Low energy consumption, saves 60% power comparing conventional lights
10 No need for starter and ballasts, instant soft-start, no speckle, no flickering, no humming, no buzzing, no RF interference
11 Easy to install, replace T8/T10 conventional fluorescent light directly low maintenance cost. Lower costs by reducing re-lamp frequency, especially in difficult to reach areas that require lifts
12 Long life-span: life time 30,000hrs, 6 times longer than traditional fluorescent tubes
13 Different length available: 60cm/90cm/120cm/150cm/180cm/240cm
14 Strict quality control, lighting aging for 72 hours and complete inspection before shipping
15 Solid-state, high shock resistant, strong packaging, convenient to transportation
Application
T8 LED Tubecan be extensively applied to general lighting, such as mall, store, hotel, office, supermarket, commercial building, station, bus, warehouse, signage, residential, parking lot, home, restaurant , train, railway, subway station, bank, warehouse, exhibition gallery, library, closet, factory,cabinet, cupboard, kitchen,refrigeration unitsetc. Replace conventional fluorescent lamp or sodium lamp. Energy efficient, environmentally friendly
Additional Information
| Payment Terms | T/T, Others |
|---|---|
| Minimum Order | 100PCS |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | FOB |
| FOB Port | Shenzhen |
| Loading Info | by air,by ship,or by express |
| Packing Info | individual and carton |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
