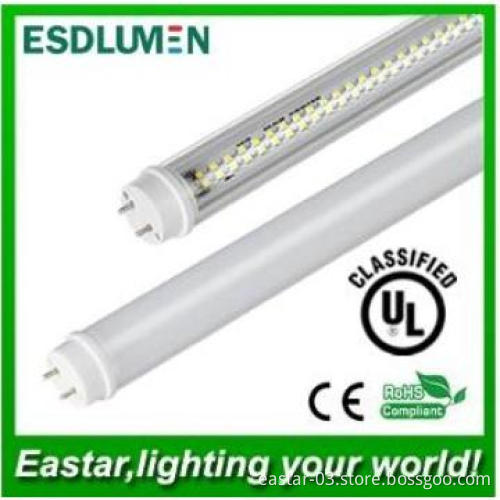

UL LED TUBE/LED fluorescent tube

1.Features

   1 Low electricity consumption which could help you to save your expenditure. Save up 50-70% electricity consumption than conventional tubes.
 2  Environment friendly: no UV and infrared ,no hazardous substance.
 3 Long lifespan:5-8 times than fluorescent tube. Save your maintenance cost.
4  Perfect heat dissapition：aluminum alloy lamp shell and perfect heat dissapition design. Keep the led chip durable .
  5  Easy installation：build-in constant current supply.  No need extra change, directly match the
conventional fixture.
  6  Eyes protection : no flickering , friendly to eye.
  7  No electromagnetic interference: No need ballast, start quickly, no noise when working .
  8  Use Widely : Frosted cover ,stripe cover , transparent cover is optional. Different color temperature satisfied to different lighting demand.

 2.Parameters
    • Led source : SMD 3528 High brightness chip.
• Driver type : Internal constant current driver.
•Input voltage : AC85V-265V/50-60HZ
•Power factor : ≥0.9
•Luminous flux


Module	ESD-ZRG-T8-900
Led quantities	216pcs
Led chip	Original Epistar chip from TaiWan
Luminous flux（lm）	1304
Luminous Efficacy（lm/w）	85.7

•Color temperature：W-warm white（2700-3700K），N-neutral white( 3700-5500K)，P-pure white（5500-6500K），C-cool white（7000-9000K）
•CRI：≥70
•Beam angle：120°
•Protection class：IP44
•Materials：6063 AL +PC cover
•Lifespan：> 30000Hours。
•Working environment：Indoor usage, -25℃～45℃,10%~90%。
•Certification: CE , RoHS
3.Illuminance Graph



Power	15W
Led chip	Original Epistar chip from TaiWan
1M（a）Lux（Lx）	455
2M（b）Lux（Lx）	173
3M（c）Lux（Lx）	110


4.Application
•Home lighting（Living room、Bedroom、Restaurant、kitchen、Corridor and so on
•Public lighting（Office、Shopping mall、hotel、School、Station、warehouse、parking lot etc.）

 5、Product dimension and Physical Diagram

6.Installation and instructions
 Electrical Connectivity Diagrams:

Installation：
  Led fluorescent tube replace conventional fluorescent tube with magnetic ballast.


Led fluorescent tube replace conventional fluorescent tube with electrical ballast.

Cautions：

1．Before installation, please confirm thevoltage is between 180 and 264Vac 50-60Hz. Otherwise, it will not workable.. 2．Before mounting or replacing LED tubes, do please cut off the power to avoid electric shock. 3．Non-waterproof, Please only use it in indoors or similar environment. Please equip with waterproof device when used in humid environment. 7.Packing information   Size Material pcs/box Inner box ￠41X950 mm A=B 1 Outer box 950X260X220mm A=B 30 8.Project case.
