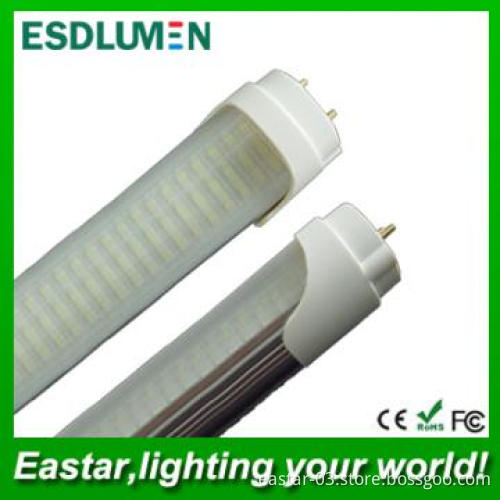

UL LED Tube/13.5W T8 LED Tube (900mm)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Life | 50,000 hours |
|---|---|
| Package | Yes |
| Tube Diameter | T8 |
| Color Tones | Warm Color |
| Lamp Base | G13 |
| Illuminant | LEDs |
| Light Source Chip | CREE |
| Power | 13.5W |
Detail Description
UL LED Tube/13.5W T8 LED Tube (900mm)
Module
ZRG-T8-0900-GSP9-A1 (transparent PC cover)
ZRG-T8-0900-GTP9-A1 (stripe PC cover)
ZRG-T8-0900-GDP9-A1 (frosted PC cover)
2. Long life-span: life time 50,000hrs, 6 times longer than traditional 13.5W T8 LED tubes
3. Different length available: 60cm/90cm/120cm/150cm/180cm/240cm
| Total power consumption | 16W |
| LED consumption | 13.5W |
| Input voltage | AC90-250V, 50/60Hz |
| Power supply | built-in constant current |
| Lighting source | low power 3528/3014/5050 LEDs |
| LED quantity | 216pcs |
| Dimension | Φ26mm*900mm |
| Material | PC cover transparent |
| Lamp holder | G13 |
| Luminous flux | 1110lm±10% |
| Luminous efficiency | 70–80lm/W |
| Color temperature | 2700-4500K,4500-6000K,6000-9000K |
| Viewing angle | ≤120 ° |
| CRI | Ra﹥70 |
| Working temperature | -20～40℃（-4～104 °F） |
| Working environment | indoor use |
| Environment humidity | <90﹪ |
| Protection rating | IP44 |
| Life-span | 50,000 hours |
| Weight | 285g |
| Certification | CE, RoHS and UL pending |
| Warranty | 2 years |
Features:
1. 900mm 13.5W LED tube lighting Wide range voltage input.2. Long life-span: life time 50,000hrs, 6 times longer than traditional 13.5W T8 LED tubes
3. Different length available: 60cm/90cm/120cm/150cm/180cm/240cm
Applications:
13.5W 900mm T8 LED Tube can be extensively applied to general lighting, such as mall, store, hotel, office, supermarket, commercial building, station, bus, warehouse, signage, residential, parking lot, home, restaurant , train, railway, subway station, bank, warehouse, exhibition gallery, library, closet, factory, cabinet, cupboard, kitchen, refrigeration units etc. Replace conventional fluorescent lamp or sodium lamp. Energy efficient, environmentally friendly.
900mm 13.5W T8 LED TUBE Dimension
900mm 13.5W T8 LED TUBE Eelectric Connection
900mm LED T8 tube light Installation
1 ) Fitting with starter, inductive (magnetic) 13.5W fluorescent tube lighting
A.Remove the starter from the fitting
B. Plug the 13.5W T8 LED tube into the fitting directly, it would be better to remove both starter and ballast
2) Fitting with electrical ballast
A.Remove the electrical ballast from the fitting
B. Connect the anode & cathode directly
C. Plug the 900mm LED tube into the fitting
1 ) Fitting with starter, inductive (magnetic) 13.5W fluorescent tube lighting
A.Remove the starter from the fitting
B. Plug the 13.5W T8 LED tube into the fitting directly, it would be better to remove both starter and ballast
2) Fitting with electrical ballast
A.Remove the electrical ballast from the fitting
B. Connect the anode & cathode directly
C. Plug the 900mm LED tube into the fitting
900mm 13.5W T8 LED TUBE Test Report
900mm 13.5W T8 LED TUBE Dimension
900mm 13.5W T8 LED Frosted PC Cover
Additional Information
| Payment Terms | T/T, L/C, Western Union |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | Air/Sea/Express |
| FOB Port | Shenzhen |
| Loading Info | Air/Sea/Express |
| Packing Info | exquisite carton,FCCD |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
