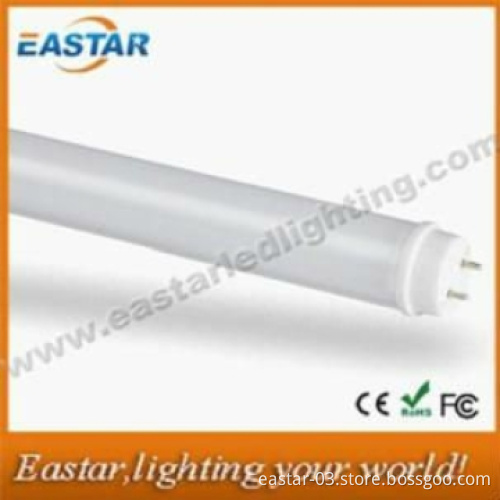

High Efficiency LED Red Tube, Direct manufactory
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| warranty | 3years |
|---|---|
| Dimmer | Dimmable |
Detail Description
Technical Parameters
Parameter |
Value |
Total power consumption |
26W |
LED consumption |
23W |
Input voltage |
AC90-250V, 50/60Hz |
Power supply |
built-in constant current |
Lighting source |
low powers 3528/3014/5050 LEDs |
LED quantity |
360pcs |
Dimension |
26mm*1500mm |
Material |
PC cover transparent |
Lamp holder |
G13 |
Luminous flux |
2100lm±10% |
Luminous efficiency |
70–80lm/W |
Dimmer (for choice) |
1.general model |
|
2.remote controler |
|
3.Silicon-controlled rectifier |
Cover (for choice) |
1. milky white |
|
2. stripe |
|
3. transparent |
Color Tem (for choice) |
1. 2700-3300K |
|
2. 3500-4500K |
|
3. 5500-6500K |
Viewing angle |
≤120 degree |
CRI |
Ra>70 |
Working temperature |
-20~40°C(-4~104 °F) |
Environment humidity |
<95% |
Working environment |
indoor use |
Protection rating |
IP44 |
Life-span |
>30,000 hours |
Weight |
560g |
Certification |
CE, RoHS and UL pending |
Warranty |
2 years |
Illuminance
Frosted PC Cover
Stripe PC Cover
Transparent PC Cove
Electric Connection Diagram
Installation
A. Inductive Ballast
B. Electronic Ballast
Attentions:
1. Before installation, check whether the power is suitable. The TUBE must work under the right voltage according to the specification.
2. Cut off the power first for safety
3. Don’t take the tube apart
4. Recommend indoor use
5. Please use it in a ventilation environment and keep it from water.
6. DO NOT connect power (positive & negative) to the two pins at one end only. If they are connected together (positive/negative), you will create a short circuit!
Packaging
Case
//
Additional Information
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 50 |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | Air/Sea/Express |
| FOB Port | Shenzhen |
| Loading Info | Air/Sea/Express |
| Packing Info | exquisite carton,FCCD |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
