High quanlity Dimming T8 LED Tube
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Weight | 280g |
|---|---|
| Certification | CE, RoHS and FCC |
| Life | 50,000 hours |
| Power | 50,000 hours |
| Package | Yes |
| Color Tones | Warm Color |
| Length | 60cm |
| Illuminant | LEDs |
| Voltage | 220V |
Detail Description
We are top 20 LED Tube manufacturer in China, professional in T5/T8/T10 LED Tube,T8 LED Tube , LED panel , LED Spotlight,LED ceiling light and LED bulb. Providing unique design super quality LED Tube and Lighting. All our Tube and LED Lighting have pass CE RoHS FCC approval.

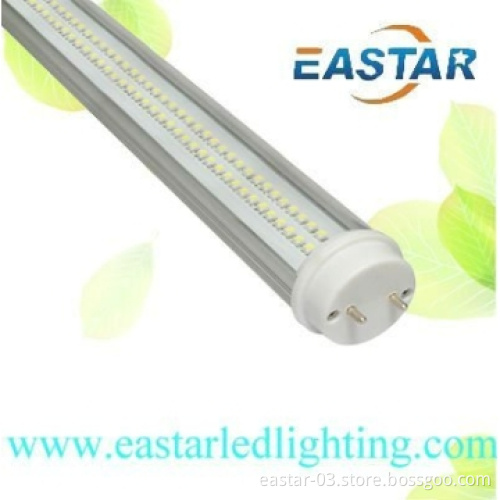

Dimming T8 LED Tube Light
2 High quality light source. The attenuation of SMD LED light source is less than 3% by 3000hrs aging test under temperature 50 degrees celsius, high luminous efficiency of single LED.
3 Advanced constant current driver with short circuit protection, open circuit protection, overload protection, etc.
4 Superior raw materials. Made of high quality aluminum material, which helps to the heat dissipation and turn on delicate appearance
5 Professional thermal management. Adopts aluminum substrate tightly connected with aluminum housing by insulated glue and greatly reduce the heat dissipation
Dimming T8 LED Tube Light
| Total power | 4-14W |
| Input voltage | AC90-250V, 50/60Hz |
| Power supply | internal constant current |
| Lighting source | low power 3528/3014/5050 LEDs |
| LED quantity | 144pcs |
| Dimension | Φ30mm*590mm |
| Material | aluminum PCB and housing & PC cover |
| Luminous flux | 250-800lm±10% |
| Luminous efficiency | 75–85lm/W |
| Color temperature | 2700-4500K,4500-6000K,6000-9000K |
| Viewing angle | ≤120 ° |
| CRI | Ra﹥70 |
| Working temperature | -20～40℃（-4～104 °F） |
| Environment humidity | <95﹪ |
| Working environment | indoor use |
| Protection rating | IP44 |
| Life-span | 50,000 hours |
| Weight | 280g |
| Certification | CE, RoHS and FCC |
| Warranty | 2 years |
Features:
1 Triac Rotary switch dimmer with step-less dimming, using high quality silicon controlled rectifier. Exquisite appearance2 High quality light source. The attenuation of SMD LED light source is less than 3% by 3000hrs aging test under temperature 50 degrees celsius, high luminous efficiency of single LED.
3 Advanced constant current driver with short circuit protection, open circuit protection, overload protection, etc.
4 Superior raw materials. Made of high quality aluminum material, which helps to the heat dissipation and turn on delicate appearance
5 Professional thermal management. Adopts aluminum substrate tightly connected with aluminum housing by insulated glue and greatly reduce the heat dissipation
Applications:
T8 LED tube can be extensively applied to general lighting, such as mall, store, hotel, office, supermarket, commercial building, station, bus, warehouse, signage, residential, parking lot, home, restaurant , train, railway, subway station, bank, warehouse, exhibition gallery, library, closet, factory, cabinet, cupboard, kitchen, refrigeration units etc. Replace conventional fluorescent lamp or sodium lamp. Energy efficient, environmentally friendlyDimming T8 LED Tube Dimension
Dimming T8 LED Tube Eelectric Connection Diagram
600mm Dimming T8 LED Tube Light Installation
1 Before installation, check whether the power is suitable. The tube must work under the right voltage according to the specification.
2 Cut off the power first for safety
3 Don’t take the tube apart
4 Recommend indoor use
5 Please use it in a ventilation environment and keep it from water.
6 DO NOT connect power (positive & negative) to the two pins at one end only. If they are connected together (positive/negative), you will create a short circuit!
1 Before installation, check whether the power is suitable. The tube must work under the right voltage according to the specification.
2 Cut off the power first for safety
3 Don’t take the tube apart
4 Recommend indoor use
5 Please use it in a ventilation environment and keep it from water.
6 DO NOT connect power (positive & negative) to the two pins at one end only. If they are connected together (positive/negative), you will create a short circuit!
600mm Dimming T8 LED Tube Test Report
600mm Dimming T8 LED Tube Spectrum Test Report
600mm Dimming T8 LED Tube Installation
