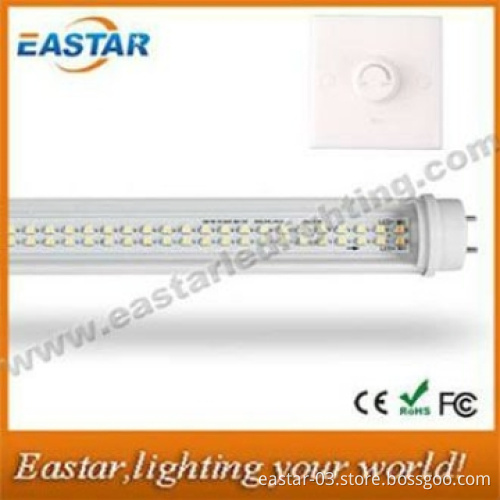

High Quality Dimming T8 LED Tube

We are top 20 LED Tube manufacturer in China, professional in T5/T8/T10 LED Tube. Providing unique design super quality LED Tube. All our  Tube have pass CE RoHS FCC approval.



Specifications:

Total power 4-14W Input voltage AC90-250V, 50/60Hz Power supply internal constant current Lighting source low power 3528/3014/5050 LEDs LED quantity 144pcs Dimension Φ30mm*590mm Material aluminum PCB and housing & PC cover Luminous flux 250-800lm±10% Luminous efficiency 75–85lm/W Color temperature 2700-4500K,4500-6000K,6000-9000K Viewing angle ≤120 °     Working temperature -20~40°C(-4~104 °F)     Working environment indoor use Protection rating IP44 Life-span 50,000 hours Weight 280g Certification CE, RoHS and FCC Warranty 2 years



1 Triac Rotary switch dimmer with step-less dimming, using high quality silicon controlled rectifier. Exquisite appearance
2 High quality light source. The attenuation of SMD LED light source is less than 3% by 3000hrs aging test under temperature 50 degrees celsius, high luminous efficiency of single LED.
3 Advanced constant current driver with short circuit protection, open circuit protection, overload protection, etc.
4 Superior raw materials. Made of high quality aluminum material, which helps to the heat dissipation and turn on delicate appearance
5 Professional thermal management. Adopts aluminum substrate tightly connected with aluminum housing by insulated glue and greatly reduce the heat dissipation





T8 LED tube can be extensively applied to general lighting, such as mall, store, hotel, office, supermarket, commercial building, station, bus, warehouse, signage, residential, parking lot, home, restaurant , train, railway, subway station, bank, warehouse, exhibition gallery, library, closet, factory, cabinet, cupboard, kitchen, refrigeration units etc. Replace conventional fluorescent lamp or sodium lamp. Energy efficient, environmentally friendly



Dimming T8 LED Tube Dimension

Dimming T8 LED Tube Eelectric Connection Diagram



600mm Dimming T8 LED Tube Spectrum Test Report



600mm Dimming T8 LED Tube Installation
