Factory Best Price LED Tube (2400mm)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Certification	CE, RoHS and UL pending
Warranty	2 years
Life	50,000 hours
Power	36W
Package	Yes
Color Tones	Warm Color
Illuminant	LEDs
Light Source Chip	CREE
Voltage	220V

Detail Description

We are top 20 LED Tube manufacturer in China, professional in LED Tube,T8 LED Tube , T5 TUBE,T10 LED Tube, Providing unique design super quality LED Tube lights. All our TUBE lights have pass CE RoHS FCC approval.

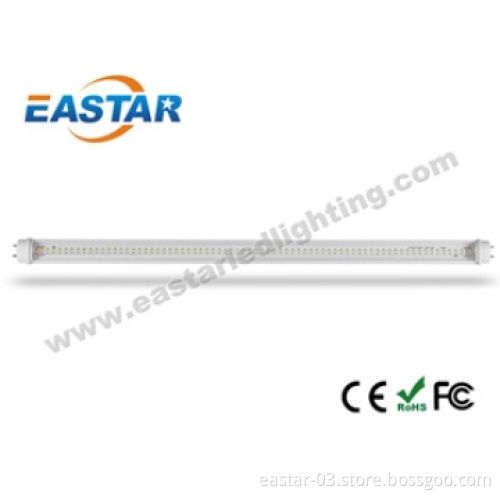

36W T8 LED Tube (2400mm)

Specifications

Module

ZRG-T8-2400-GSP9-A1 (transparent PC

ZRG-T8-2400-GTP9-A1 (stripe PC cover)

ZRG-T8-2400-GDP9-A1 (frosted PC cover)

Specifications:
Total power consumption	42W
LED consumption	36W
Input voltage	AC90-250V, 50/60Hz
Power supply	built-in constant current
Lighting source	low power 3528/3014/5050 LEDs
LED quantity	576pcs
Dimension	Φ26mmx2400mm
Material	PC cover transparent
Lamp holder	G13
Luminous flux	2900lm±10%
Luminous efficiency	70–80lm/W
Color temperature	2700-4500K,4500-6000K,6000-9000K
Viewing angle	≤120 °
CRI	Ra﹥70
Working temperature	-20～40℃（-4～104 °F）
Environment humidity	<90﹪
Working environment	indoor use
Protection rating	IP44
Life-span	50,000 hours
Weight	720g
Certification	CE, RoHS and UL pending
Warranty	2 years

Features:

1. No need for starter and ballasts, instant soft-start, no speckle, no flickering, no humming, no buzzing, no RF interference
2. The 2400mm 36W T8 LED tube lights Easy to install, replace T8/T10 conventional fluorescent light directly low maintenance cost. Lowers costs by reducing re-lamp frequency, especially in difficult to reach areas that require lifts
3. long life-span: life time 50,000hrs, 6 times longer than traditional fluorescent tubes

Applications:

36W 2400mm T8 LED Tube can be extensively applied to general lighting, such as mall, store, hotel, office, supermarket, commercial building, station, bus, warehouse, signage, residential, parking lot, home, restaurant , train, railway, subway station, bank, warehouse, exhibition gallery, library, closet, factory, cabinet, cupboard, kitchen, refrigeration units etc. Replace conventional fluorescent lamp or sodium lamp. Energy efficient, environmentally friendly.

2400mm 36W T8 LED TUBE Dimension

36W T8 LED TUBE Eelectric Connection Diagram

36W 2400mm LED T8 tube light Installation
1 ) Fitting with starter, inductive (magnetic) fluorescent tube lighting
A.Remove the starter from the fitting
B. Plug the 36w 2400mm LED tube into the fitting directly, it would be better to remove both starter and ballast
2) Fitting with electrical ballast
A.Remove the electrical ballast from the fitting
B. Connect the anode & cathode directly
C. Plug the 36W T8 2400mm LED tube lighting into the fitting

36W 2400mm T8 LED TUBE Test Report

2400mm 36W T8 LED TUBE Dimension

36W T8 LED tube Frosted PC Cover Illuminance

Additional Information

Payment Terms	L/C, T/T, Others
Minimum Order	10
Lead Time / Delivery Time	10 Day(s)
Sample Available	YES
Delivery Details	Air/Sea/Express
FOB Port	Shenzhen
Loading Info	Air/Sea/Express
Packing Info	Exquisite carton
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
