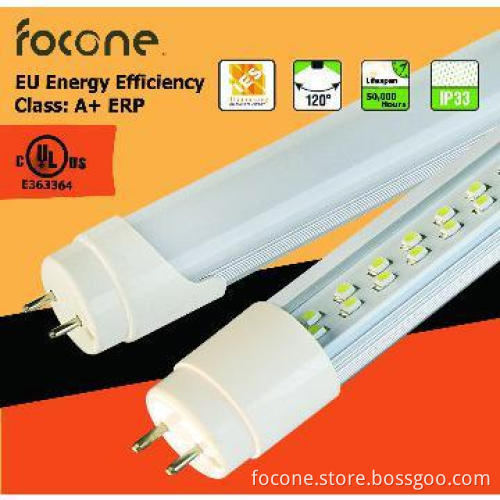

1200mm 18w tube t8 fluorescent led tube 8 led tube CE ROHS Approved
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
Warranty | 3 years |
---|---|
Driver | Isolated Constant Driver |
Led Type | LED Tubo T8 |
Color Temperature | 4000-4500K |
CRI | >80 |
Life | 50000hours |
Package | Yes |
Light Source Chip | Epistar |
Tube Diameter | T8 |
Length | 120cm |
Lamp Base | G13 |
Color Tones | Natural White |
Voltage | 90-260V |
Power | 18W |
Illuminant | SMD |
Detail Description
1) Factory based, Profeisional in LED Tube OEM
2) Epistar led Chip, SMD approved ies-80
3) CE,ROHS,SAA Listed quality led tube
Key StrengthS
High lumen efficiency: 100lm/w,CRI>80
High power factor: >0.92 Low Dicay High Lumens SMD2835 with IESNA LM-80
Conform to CE, ROHS
Specification
Power: | 18w | Light Source: | SMD2835 |
Input Voltage: | AC85-265V | LED QTY: | 120PCS |
Power Supply | Non-isolated Internal Driver | Luminous Flux: | 11800LM |
Operating frequency: | 50~60 Hz | Beam Angle: | 120° |
Power factor (PF) : | >0.9 | Color rendering index (Ra): | >70 |
LED Drive: | Constant-current drive | Color temperature (k): | 3000-6000k |
LED Base : | G13 | Housing: | Aluminum+PC |
Size: | 26*1200mm | Warranty | 3 years |
Your color temperature choice:
Warm White: 2870-3220K Natural White: 3985-4503K Pure white:5028-5665k Cold white: 5665-6530K
Features:
Independent research and development on light source and epistar chip---We take 70% capability of low
power chip of Epistar company and are one of top ten qualified clients, the only one authorized by Epistar
in china mainland. High brightness and super low failure are are our largest competetiveness.
Smd2835--High stability and reliability with the light failure less than 1% at 6000hours.With IEC LM-80 approved.
Lifud Power supply of 3 to 5 years warranty with UL approved.
Isolated Internal driver with Conversion efficiency>85%, PF>0.95
Wiring Method:
Tubes workshop
Our Facilities.
1.Salt spray test chamber.
Salt spray test chamber is a environmental test method by salt spray test equipment to create artificial salt mist environmental conditions , which to test product or metal material’s ability of corrosion resistance.
It is testing the Lighting fitting’s cladding material whether gets rusty or not and checking the quality whether up to the quality standard.
2. Vibration test machine.
Vibration test machine with the ability to identify whether the products bear the environmental vibration from simulating in manufacturing, assembly, transport and other environment cases . It’s platform helps your product meet high quality standard .
3, Programmable constant temperature and humidity chamber.
This Chamber simulates the ambient environment temperature to test the products whether perform properly under those environment. It detects product’s maximum and minimum working enduring temperature whether up to the standard.
4, Optic Integrating sphere photoelectricity analysis system.
It is machine to test Watt, Luminous Flux, CRI, CCT and other details parameters of the light fittings, it shows the quality of your products by this light parameters from Integrating Sphere, We use World famous EverFine Brand Integrating Sphere to test our led lighting products, it shows more accurate in details of technical parameters and ensure it has genuinely meet your request .
Our Members:
Packing and Delivery Method.
Besides product quality, Focone also provide with you high level package and transportation, preventing the lights being damaged during transportation.
1. For package, we pay attention to each detail.
2. For transportation, we always try to consider from our clients’ position and offer the most cost effective way, we are a manufacturer and We never try to make money from transportation.
Additional Information
Payment Terms | L/C, T/T, Western Union |
---|---|
Minimum Order | 10 |
Lead Time / Delivery Time | 7 Day(s) |
Sample Available | YES |
Delivery Details | Samples delivery in around 7 workdays after payment , 3000pcs delivery in around 15-20workdays after payment . |
FOB Port | Shenzhen |
Loading Info | Samples by DHL UPS, Or Air , Bulk order suggested to ship by sea. |
Packing Info | 25pcs/CTN, 1.2M Carton Size: 1290*230*230mm , 12000pcs/20\'ft GP, |
Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Middle East |
