Hot sale 22W UL cUL DLC 4ft led tube Commercial lighting
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Commercial lighting | Indoor use |
|---|---|
| LED Source | SMD2835 (LM-80) |
| Color | Nature white |
| Power | 22W |
| Certificate | DLC,UL,CUL LM-79 |
| Life | 50,000Hrs |
| Voltage | 270V |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Power | 22W |
| Length | 120cm |
| Lamp Base | G13 |
| Color Tones | Natural White |
| Illuminant | SMD |
Detail Description
Nature white UL cUL DLC 4ft led tube 22W Commercial lighting , Indoor use only
Office/school use T8 tube light
T8 4ft 22W.2200lm. Nature white
5 years warranty. 50 000hrs lifespan

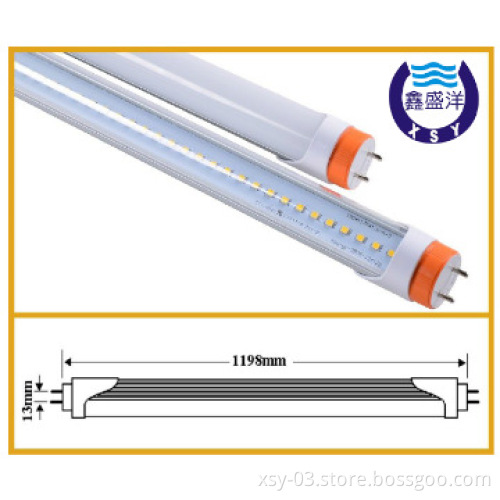

LED Tube Picture:
Advantage:
1. Operate Voltage: 100~277Vac, 50/60Hz,PF>0.96
2. LED Type: SMD2835, HONGLI LM-80 chips
3. Luminous efficiency: 100LM/W
4. Color Temperature: 3500K, 4000K, 5000K
5. CRI: Ra> 80,R9> 10
6. Driver Type: Isolated internal driver with Rubycon capacitor.
7. G13 rotatable base available
8. Warranty: 5 years 50 000hrs lifespan
9. Certificates: DLC(LM-80/LM-79), UL/cUL (E358080), FCC, CE, RoHS. SAA/C-Tick standard.
DLC Description:
DLC led tube light for Linear Panels conversion for use only with fluorescent luminaires.
It delivers up to high lumens of exceptional 83+ CRI light with L70> 50000Hrs while achieving 100LM/W.
The Retrofit Kits are available in 3500K, 4000K, 5000K,
Using the UL/cUL isolated internal power supply,
Widely used in office spaces, major retail stores, education, government, healthcare, and hospitality. Anywhere bright, beautiful, uniform light is required for general purpose lighting.
Its high performance is coupled with affordability, making it the best solution for any lay-in project, with its high performance.
Description for our Tube
LED Tube data:
LED Chips data:
LED Driver data:
DLC/UL LED Tube:
| Items | Model No. | Input Power | Luminous Efficiency | CRI | CCT | Input Voltage | Warranty | Certification |
| 4FT 15W LED Tube |
LD-XSY- T8P15L12 | 15W | 100~110LM/W | Ra>80,R9>10 | 3000/4000/5000K | AC100-277V | 5 Years | DLC,cUL,FCC |
| 4FT 16W LED Tube |
LD-XSY- T8P16L12 | 16W | 100~110LM/W | Ra>80,R9>10 | 3500/4500/5000K | AC100-277V | 5 Years | DLC,cUL,FCC |
| 4FT 18W LED Tube |
LD-XSY- T8P18L12 | 18W | 100~110LM/W | Ra>80,R9>10 | 3500/4000/5000K | AC100-277V | 5 Years | DLC,cUL,FCC |
| 4FT 20W LED Tube |
LD-XSY- T8P20L12 | 20W | 100~110LM/W | Ra>80,R9>10 | 3500/4000/5000K | AC100-277V | 5 Years | DLC,cUL,FCC |
| 4FT 22W LED Tube |
LD-XSY- T8P22L12 | 22W | 100~110LM/W | Ra>80,R9>10 |
3000/3500/4000/ 4500/5000K |
AC100-277V | 5 Years | DLC,cUL,FCC |
Competitive LED Tube:
| Items | Model No. | Input Power | Luminous Efficiency | CRI | Dimensions | Input Voltage | Warranty | Certification |
| 2FT 9W LED Tube |
XSY-T8P09L06 | 9W | 100~110LM/W | Ra>80,R9>10 | D26*588MM | AC100-277V | 3 Years | CE,RoHS |
| 3FT 15W LED Tube |
XSY-T8P15L09 | 15W | 100~110LM/W | Ra>80,R9>10 | D26*898MM | AC100-277V | 3 Years | CE,RoHS |
| 4FT 20W LED Tube |
XSY-T8P20L12 | 20W | 100~110LM/W | Ra>80,R9>10 | D26*1198MM | AC100-277V | 3 Years | CE,RoHS |
| 5FT 26W LED Tube |
XSY-T8P26L15 | 26W | 100~110LM/W | Ra>80,R9>10 | D26*1498MM | AC100-277V | 3 Years | CE,RoHS |
| 8FT 40W LED Tube |
XSY-T8P40L24 | 40W | 100~110LM/W | Ra>80,R9>10 | D26*2367MM | AC100-277V | 3 Years | CE,RoHS |
Dimensions:
Installation Instruction:
One end power supply:
Auto Aging Test:
T8 LED Tube Certificates:
Factory Facility:
LED Tube Package:
25PCS/CTN with 5 levels EPE or 25PCS/CTN with cylinder.
Application:
1. Corridor lights, architectural point of light, windows Gallery lighting.
2. Furniture, lighting, commercial lighting, museums, exhibition lighting
3. Lighting projects, banks, hotels, schools, bookstores, sports and other lighting.
4ft 22W UL/DLC led tube
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 1 PCS |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Sample orders:-- (Less than 50 PCS) , 5~7 working daysMass order:--Less than 1000 PCS, 8~10 working days--Less than 5000 PCS, 14~18 workingdays--Less than 10000 PCS, 20~25 working days |
| FOB Port | Hong Kong,Shenzhen |
| Loading Info | According to the customer`s request. Usually less 500 PCS by Express, like DHL, UPS, Fedex, etc.More than 500 PCS by air service or by sea. |
| Packing Info | 1. 30 PCS each carton.2. Box is wrapped with tough strap with corner protection.3. Carton size: 126cm*22cm*20cm. 4. Gross weight : 22 KG. |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
