20W T8 LED retrofit tube 2000lm, TUV/UL/DLC approved
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| AC input | 100-277v |
|---|---|
| Material | Alloy+PC |
| Lamp base | G13 |
| Power | 15w, 18w, 20w, 22w |
| Length | 0.9m, 1.2m, 1.5m, 1.8m, 2.4m |
| Life | 50000 hours |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Length | 120cm |
| Lamp Base | G13 |
| Power | 20W |
| Color Tones | Natural White |
| Voltage | 90-260V |
| Illuminant | SMD |
Detail Description

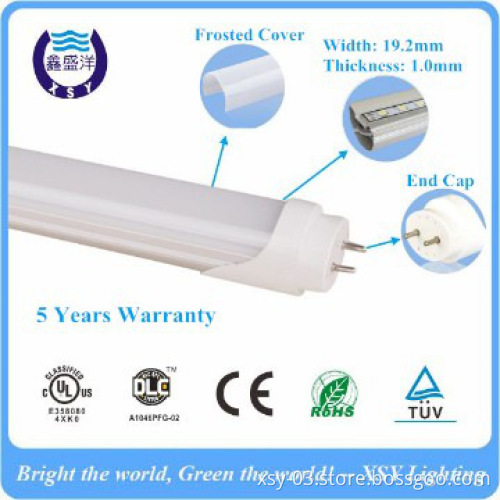

20W T8 LED retrofit tube 2000lm
TUV/UL/DLC approved
1. 1.2M(4ft), 20W, G13 lamp base, 2835 SMD
2. Isolated drive
3. Aluminum Alloy+PC cover
4. 5 years warranty
5. Wide range input of 100-277VAC
Specification:
| LED Footprint | SMD 2835 |
| Material | Aluminum alloy +PC cover |
| Work Voltage | AC 100-277V |
| Watt | 20W |
| Luminance Flux | 2000lm±100lm |
| Power Factor | 0.92 |
| CCT | 3500K /4000K/5000K |
| CRI | >80 |
| Life Span | >50,000hours |
| Net Weight | 410g |
| Size | Ф26*L1198mm |
| Warranty | 5 years |
| Note | Rotatable base can be choose |
Advantage:
1. LED Chip : High quality 2835 SMD chip from Guangzhou Hongli with LM-80 report.
2. Driver : Isolated Internal driver with Rubycon electrolytic capacitor.
3. PCB and house: Aluminum alloy, according to the UL standard.
4. Luminous efficiency : 100~110 LM/W.
5 Customized Rotatable Base
6. Wattage: 15W,16W, 18W,20W,22W.(1200MM)
7. Warranty : 5 Years .
8. The whole lamp with DLC/UL/SAA/CE/RoHS approved.
LED Tube Specification:
Item |
Model No. |
Input Power |
Lumen Output |
CRI |
Dimensions |
Input Voltage |
Warranty |
Certificate |
|
LD-XSY-T8P15L12 |
15W |
1500LM |
Ra>83,R9>10 |
D26*1198MM |
AC 100-277V |
5 Years |
DLC,UL,FCC |
|
LD-XSY-T8P18L12 |
18W |
1800LM |
Ra>83,R9>10 |
D26*1198MM |
AC 100-277V |
5 Years |
DLC,UL,FCC |
|
LD-XSY-T8P20L12 |
20W |
2000LM |
Ra>83,R9>10 |
D26*1198MM |
AC 100-277V |
5 Years |
DLC,UL,FCC |
|
LD-XSY-T8P22L12 |
22W |
2200LM |
Ra>83,R9>10 |
D26*1198MM |
AC 100-277V |
5 Years |
DLC,UL,FCC |
Dimensions:
Installation Instruction:
Single end supply:
Method A:
Single end supply:
Method B:
Auto Aging Test for quality control:
LED Tube certificates:
UL approved
DLC approved
TUV approved
CE/ROHS approved
LED Tube Package:
25PCS/CTN with 5 levels EPE or 30PCS/CTN with cylinder.
XSY LED tube, high bay light, flood light-Different certificate available.
For more details for our product range, factory, equipment, specification form, pls contact me for help!
Coco Guo
Mobile: +86 13823304234
Skype : coco.guo55
E-mail: coco at xsylight dot com
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | Sample orders:-- (Less than 50 PCS) , 5~7 working daysMass order:--Less than 1000 PCS, 8~10 working daysLess than 5000 PCS, 14~18 working days--Less than 10000 PCS, 20~25 working days |
| FOB Port | Guangzhou,Hong Kong,Shenzhen, |
| Loading Info | According to the customer`s request. Usually less 500 PCS by Express, like DHL, UPS, Fedex, etc.More than 500 PCS by air service or by sea. |
| Packing Info | Put the T8 tube light in the slot of the EPE5 levels in each cartoncovering the 4mm EPE on the top. 25pcs in one carton |
| Target Market(s) | North America, Oceania, Eastern Europe, Western & Southern Europe, Northern Europe |
