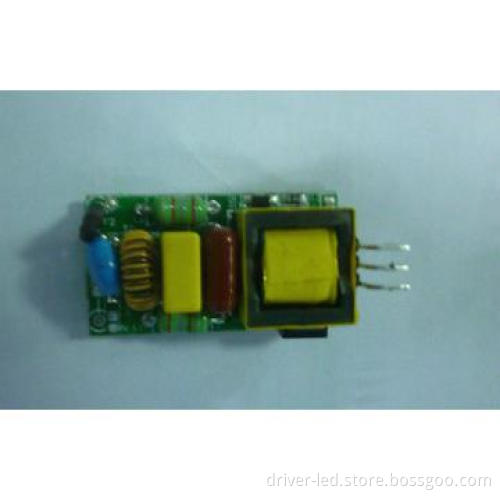

13W High PFC for LED tube LED driver

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Life	2years
Dimmable	No
Power	13W

Detail Description

AC 100-240Vac.
Protections: OCP and SCP
Driving 24 pcs in Parallel and 10-12pcs in Series;
Dielectric strength: 1.5kV AC, leakage current 5mA, 60 seconds
Built-in constant current LED drivers
Low-noise and environment-friendly
Use highly efficient, steady and low-loss switch control chip
Application: LED tube T8/T10 internal driver.

Technical data:

Input Voltage Range	100-240V
Power Factor	>0.85
Output rated current	130mA ± 5%
Output DC Voltage	48-55V
Ambient temperature	-20ºС ~50ºС
Efficiency	> 85%
Dimension	L40W20.5H*16MM
Estimated value of time between failures	≈30000 h

All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.

Input voltage: 100-240Vac

Output voltage: DC 48-55V

Output current:130MA±5%

Efficiency:85%

Power factor: 0.85

Additional Information

Payment Terms	L/C, T/T, Others
Minimum Order	1000
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES
FOB Port	Shenzhen
Target Market(s)	Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
