600MM T8 LED Tube Light SMD

Products Information

1.Description:

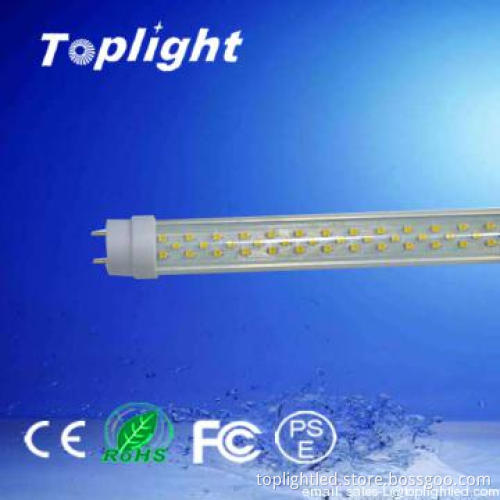

595/602mm SMD T8 LED tube light, or be called 595/602mm SMD T8 LED fluorescent lamp, Epistar 3528 LED chip, it is our long history product, with high feedback from customers. Good looking and high quality. Energy saving and economical. It can be replaced 15W conventional fluorescent lamp.

2.Advantage:
Epistar LED chip
Stable quality
Long history
Good looking
3years warranty
Good heat dissipation
Low brightness decay
Over 50,000hours lifespan
CE,ROHS,FCC,PSE listed

3.Features:
Power: 6W, 8W, 9W
Light source: SMD3528/LED 108pcs,144pcs, 171pcs
Material: AL+PC
Energy saving: over 65%
Easy installation
Fast turn on or off
No noisy
No Flickering
No RF interference
Environmental protection

4.Technical Specification:
(1) electricalparameter:

Tube Length (mm)	Model No.	LED Quantity (pcs)	Luminous Flux (lm)	Luminous Intensity (lux)
595/602mm	TP-T8SMD108-6W	108	650-750lm	100/2M
TP-T8SMD144-8W	144	860-1000lm	130/2M
TP-T8SMD171-9W	171	900-1100lm	160/2M


(2) basic parameter:

Power	6W, 8W, 9W
LED Quantity	3528 LED/108pcs, 144pcs, 171pcs
Input voltage	85-277VAC
Beam Angle	120degree
Power Factor	>0.85
Power Efficiency	>92%
Material	AL+PC


(3) PC and color temperature:

Color Temperature	Warm White(2500-3500K)
Natural White(4000-5000K)
Cool White(5500-7000K)
Tube PC	Clear PC
Frosted PC


5.Aging:
595mm/602mm SMD T8 LED tube light\'s aging time is over 72hours, LED tube lights\' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.

6.Package detail:

Tube Length	Model No.	Net Weight	Packing Size	Carton Quantity
595/602mm	TP-T8SMD108-6W	0.135kg	713*250*250mm	25pcs/CTN
TP-T8SMD144-8W	0.16kg	713*250*250mm	25pcs/CTN
TP-T8SMD171-9W	0.18kg	713*250*250mm	25pcs/CTN


7.Installation:
595/602mm SMD T8 LED tube light could be installed on the T8 or T10 bracket directly, pls take down the starter before installing.
Kindly Notice: before installing, please make sure the power source is off!

8.Application:
Indoor usage, such as below:
Room
Office
Hotel
School
Factory
Hospital
Building
Workshop
Coffee shop
Warehouse
Supermarket
Gymnasium
