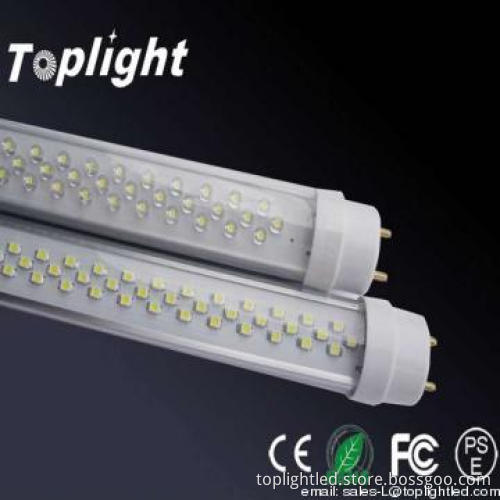

60CM 9W T8 LED Tube Light UL Listed

Products Information

1.Description:
602mmUL T8 LED tube light, or be called 602mm UL T8 LED fluorescent lamp, Designed according to the UL standard, it will work on one side and the other side is short circuit. And there is the professional LED starter;It adopts the plastics end cap, which is consistent with the requirements of safety specifications. So it will not happen that one side electrifies but the other leaks electric;It adopts breadth voltage, and it has high power factor, high efficiency and good stability. Energy saving and economical. It can be replaced 28W conventional fluorescent lamp.

2.Advantage:
UL LED tube light
UL standard design
Epistar LED chip
Stable quality
Long history
Good looking
3years warranty
Good heat dissipation
Low brightness decay
Over 50,000hours lifespan
CE,ROHS,FCC,PSE listed

3.Features:
Power: 9W
Luminous Flux: 810-900lm
Light source: SMD3528/LED 144pcs
Material: AL+PC
Energy saving: over 65%
Easy installation
Fast turn on or off
No noisy
No Flickering
No RF interference
Environmental protection

4.Technical Specification:

(1) electricalparameter:

Tube Length (mm)	Model No.	LED Quantity (pcs)	Luminous Flux (lm)	Luminous Intensity (lux)
602mm	TP-T8SMD144UL-9W	144pcs	810-900m	156/2m


(2) basic parameter:

Power	9W
LED Quantity	3528 LED/144pcs
Input voltage	85-277VAC
Beam Angle	120degree
Power Factor	>0.85
Power Efficiency	>92%
Material	AL+PC


(3)PC and color temperature:

Color Temperature	Warm White(2500-3500K)
Natural White(4000-5000K)
Cool White(5500-7000K)
Tube PC	Clear PC
Frosted PC


5.Aging:
602mmUL T8 LED tube light\'s aging time is over 72hours, the LED tube lights\' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.

6.Package detail:

Tube Length	Model No.	Net Weight	Packing Size	Carton Quantity
602mm	TP-T8SMD144UL-9W	0.16kg	713*250*250mm	25pcs/CTN


7.Installation:
602mmUL T8 LED tube light could be installed on the T8 or T10 bracket directly, pls take down the starter before installing.
Kindly Notice: before installing, please make sure the power source is off!

8.Application:
Indoor usage, such as below:
Room
Office
Hotel
School
Factory
Hospital
Building
Workshop
Coffee shop
Warehouse
Supermarket
Gymnasium
