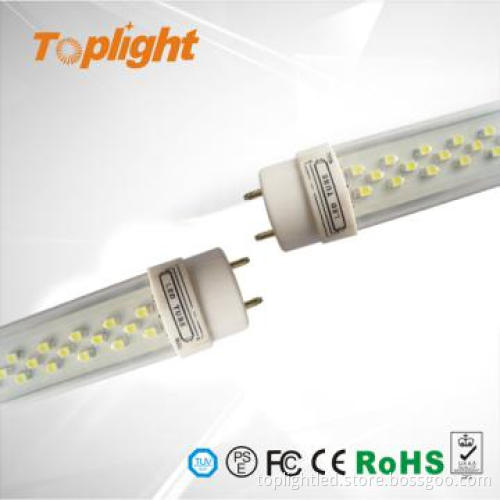

Korea T8 LED Tube 602mm 9W LED Tube Light

Korea T8 LED Tube 602mm 9W LED Tube Light

Specifications:

Product Type: 595/602mm SMD T8 LED Tube Light
Place of origin: China
Brand Name: Toplight
Model No.: TP-T8SMD171-9W
FOBPort: Shenzhen port
Minimum Order: 10 pieces
Payment Term: TT or Paypal
Shipping Term: by express, by air or by sea
Delivery Time: 4-7days for sample; 7-14days for bulk

Product Advantages:

1. High luminous flux, high efficiency with 100LM/W.
2. Plastic lamp holder with silvering pin, it can be rotated by 0-180degree.
3. D shape aluminum tube, perfectly combining with 90% light transmittance, with 25.40mm T8 standard size.
4. Before delivering, all tubes are impacted of high & low voltage and shaking test.
5. Very suitable for the place which needs high brightness, such as shopping mall, warehouse, parking etc.

Electrical parameters:

(1) Electricalparameter:

Tube Length (mm)	Model No.	LED Quantity (pcs)	Luminous Flux (lm)	Luminous Intensity (lux)
595/602mm	TP-T8SMD171-9W	171	900-1100lm	160/2M

(2) Basic parameter:

Power	9W
LED Quantity	3528 LED 171pcs
Input voltage	85-277VAC
Beam Angle	120degree
Power Factor	>0.85
Power Efficiency	>92%
Material	AL+PC

(3) PC and color temperature:

Color Temperature	Warm White(4000-4500K)
Natural White(6000-6500K)
Cool White(8000-16000K)
Tube PC	Clear PC
Frosted PC



Optical property:


Structure installation:

2ft SMD T8 LED tube light could be installed on the T8 or T10 bracket directly, pls take down the starter before installing.
Kindly Notice: before installing, please make sure the power source is off!

Aging & Packaging:

Aging:
SMD T8 LED tube light\'s aging time is over 72hours, LED tube lights\' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.



Package detail:

Tube Length	Model No.	Net Weight	Packing Size	Carton Quantity
595/602mm	TP-T8SMD171-9W	0.18kg	713*250*250mm	25pcs/CTN
