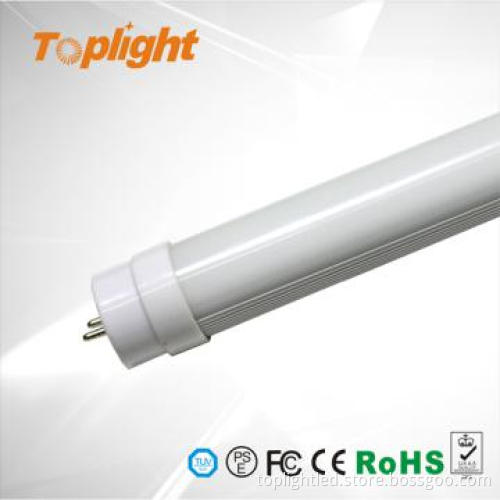

SMD LED Fluorescent Lamp Lights

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Power	6W
Life	50,000hours
Package	Yes
Tube Diameter	T8
Color Tones	Warm Color
Lamp Base	G13
Length	60cm
Illuminant	LEDs
Light Source Chip	CREE
Voltage	220V

Detail Description

Products Information

1.Description:

595/602mm SMD T8 LED tube light, or be called 595/602mm SMD T8 LED fluorescent lamp, Epistar 3528 LED chip, it is our long history product, with high feedback from customers. Good looking and high quality. Energy saving and economical. It can be replaced 15W conventional fluorescent lamp.

2.Advantage:

Epistar LED chip

Stable quality

Long history

Good looking

3years warranty

Good heat dissipation

Low brightness decay

Over 50,000hours lifespan

3.Features:

Power: 6W, 8W, 9W

Light source: SMD3528/LED 108pcs, 144pcs, 171pcs

Material: AL+PC

Energy saving: over 65%

Easy installation

Fast turn on or off

No noisy

No Flickering

No RF interference

Environmental protection

4.Technical Specification:

(1) electrical parameter:

Tube Length (mm)	Model No.	LED Quantity (pcs)	Luminous Flux (lm)	Luminous Intensity (lux)
595/602mm	TP-T8SMD108-6W	108	650-750lm	100/2M
TP-T8SMD144-8W	144	860-1000lm	130/2M
TP-T8SMD171-9W	171	900-1100lm	160/2M

(2) basic parameter:

Power	6W, 8W, 9W
LED Quantity	3528 LED/108pcs, 144pcs, 171pcs
Input voltage	85-277VAC
Beam Angle	120degree
Power Factor	>0.85
Power Efficiency	>92%
Material	AL+PC

(3)PC and color temperature:

Color Temperature	Warm White(4000-4500K)
Natural White(6000-6500K)
Cool White(8000-16000K)
Tube PC	Clear PC
Frosted PC

5.Aging:

595mm/602mm SMD T8 LED tube light\'s aging time is over 72hours, LED tube lights\' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.

6.Package detail:

Tube Length	Model No.	Net Weight	Packing Size	Carton Quantity
595/602mm	TP-T8SMD108-6W	0.135kg	713250250mm	25pcs/CTN
TP-T8SMD144-8W	0.16kg	713250250mm	25pcs/CTN
TP-T8SMD171-9W	0.18kg	713250250mm	25pcs/CTN

7.Installation:

595/602mm SMD T8 LED tube light could be installed on the T8 or T10 bracket directly, pls take down the starter before installing.

Kindly Notice: before installing, please make sure the power source is off!

Additional Information

Payment Terms	T/T, Western Union, Paypal, Others
Minimum Order	30
Lead Time / Delivery Time	5 Day(s)
Sample Available	YES
Delivery Details	4-7days for sample; 7-14days for bulk
FOB Port	Shenzhen
Loading Info	by express, by air, by sea
Packing Info	Carton package: 25pcs/CTN, 713250250mm
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
