LED 8W Light 60cm Fluorescent
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| LED Type | LED T8 Tube Light |
|---|---|
| Tube Length | 602mm |
| Power | 8W |
| LED Chip | Epistar 3528 |
| Warranty | 3years |
| Life | over 50000hours |
| Power | 8W |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Lamp Base | G13 |
| Length | 60cm |
| Voltage | 90-260V |
| Illuminant | LEDs |
| Color Tones | Pure White |
Detail Description
LED 8W Light 60cm Fluorescent

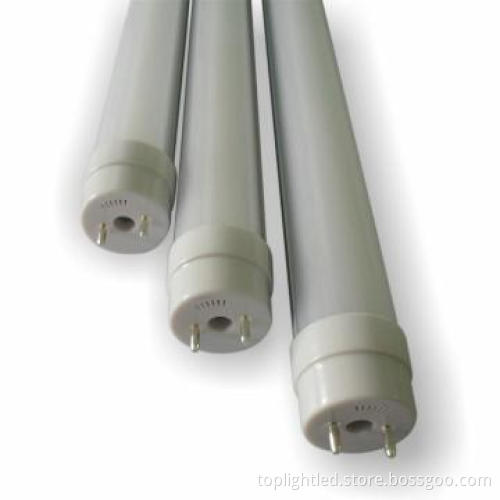

LED T8 Tube Light: G13 base, Epistar SMD3528, Clear/Frosted cover
Specifications:
Product Type: LED T8 Tube Light
Place of origin: China
Brand Name: Toplight
Model No.:
TP-T8SMD72-5W, TP-T8SMD108-6W, TP-T8SMD140-8W, TP-T8SMD144-8W
TP-T8SMD171-9W, TP-T8SMD216-12W, TP-T8SMD189-10W, TP-T8SMD204-12W
TP-T8SMD216-12W, TP-T8SMD216-12W, TP-T8SMD276-15W, TP-T8SMD288-18W
TP-T8SMD300-18W, TP-T8SMD330-18W, TP-T8SMD384-22W, TP-T8SMD276-15W
TP-T8SMD300-18W, TP-T8SDM350-20W, TP-T8SMD360-20W, TP-T8SMD432-25W
TP-T8SMD432-25W, TP-T8SMD552-32W, TP-T8SMD600-33w, TP-T8SMD576-38w
TP-T8SMD644-40w
FOB Port: Shenzhen port
Minimum Order: 30pieces
Payment Term: TT or Paypal
Shipping Term: by express, by air or by sea
Delivery Time: 4-7days for sample order; 10-20days for bulk order
Product Advantages:
1. High luminous flux, high efficiency with 90LM/W.
2. Plastic lamp holder with silvering pin, it can be rotated by 0-180degree.
3. D shape aluminium tube, perfectly combining with 90% light transmittance, with 25.40mm T8 standard size.
4. Before delivering, all tubes are impacted of high & low voltage and shaking test.
5. Very suitable for the place which needs high brightness, such as shopping mall, warehouse, parking etc.
Electrical Parameters:
electrical parameter:
(2) basic parameter:
(3)PC and color temperature:
Structure Installation:
LED T8 tube light could be installed on the T8 or T10 bracket directly, pls take down the starter before installation.
Kindly Notice: before installation, please make sure power off.
Aging & Package:
Aging:
LED T8 tube light\'s aging time is over 72hours, LED tube lights\' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.
Package Details:
White small box + Carton Package
Application:
Indoor usage, such as Room, Office, Hotel, School, Factory, Hospital, Building, Workshop, Coffee shop, Warehouse, Supermarket, Gymnasium etc.
LED T8 Tube Light: G13 base, Epistar SMD3528, Clear/Frosted cover
Specifications:
Product Type: LED T8 Tube Light
Place of origin: China
Brand Name: Toplight
Model No.:
TP-T8SMD72-5W, TP-T8SMD108-6W, TP-T8SMD140-8W, TP-T8SMD144-8W
TP-T8SMD171-9W, TP-T8SMD216-12W, TP-T8SMD189-10W, TP-T8SMD204-12W
TP-T8SMD216-12W, TP-T8SMD216-12W, TP-T8SMD276-15W, TP-T8SMD288-18W
TP-T8SMD300-18W, TP-T8SMD330-18W, TP-T8SMD384-22W, TP-T8SMD276-15W
TP-T8SMD300-18W, TP-T8SDM350-20W, TP-T8SMD360-20W, TP-T8SMD432-25W
TP-T8SMD432-25W, TP-T8SMD552-32W, TP-T8SMD600-33w, TP-T8SMD576-38w
TP-T8SMD644-40w
FOB Port: Shenzhen port
Minimum Order: 30pieces
Payment Term: TT or Paypal
Shipping Term: by express, by air or by sea
Delivery Time: 4-7days for sample order; 10-20days for bulk order
Product Advantages:
1. High luminous flux, high efficiency with 90LM/W.
2. Plastic lamp holder with silvering pin, it can be rotated by 0-180degree.
3. D shape aluminium tube, perfectly combining with 90% light transmittance, with 25.40mm T8 standard size.
4. Before delivering, all tubes are impacted of high & low voltage and shaking test.
5. Very suitable for the place which needs high brightness, such as shopping mall, warehouse, parking etc.
Electrical Parameters:
electrical parameter:
|
Tube Length (mm) |
Model No. |
LED Quantity (pcs) |
Luminous Flux (lm) |
Socket |
| 334mm | TP-T8SMD72-5W | 72LEDs | 432-500lm | G13 |
| 602mm | TP-T8SMD108-6W | 108LEDs | 650-750lm | G13 |
| 602mm | TP-T8SMD144-8W | 144LEDs | 860-1000lm | G13 |
| 602mm | TP-T8SMD171-9W | 171LEDs | 900-1100lm | G13 |
| 906mm | TP-T8SMD189-10W | 189LEDs | 1130-1320lm | G13 |
| 906mm | TP-T8SMD204-12W | 204LEDs | 1180-1450lm | G13 |
| 906mm | TP-T8SMD216-12W | 216LEDs | 1300-1510lm | G13 |
| 1212mm | TP-T8SMD216-12W | 216LEDs | 1180-1490lm | G13 |
| 1212mm | TP-T8SMD276-15W | 276LEDs | 1520-1900lm | G13 |
| 1212mm | TP-T8SMD288-18W | 288LEDs | 1630-1960lm | G13 |
| 1212mm | TP-T8SMD300-18W | 300LEDs | 1980-2310lm | G13 |
| 1212mm | TP-T8SMD384-22W | 384LEDs | 2300-2680lm | G13 |
| 1512mm | TP-T8SMD276-15W | 276LEDs | 1650-1930lm | G13 |
| 1512mm | TP-T8SMD300-18W | 300LEDs | 1600-1930lm | G13 |
| 1512mm | TP-T8SDM350-20W | 350LEDs | 3050-3480lm | G13 |
| 1512mm | TP-T8SMD360-20W | 360LEDs | 3160-3690lm | G13 |
| 1512mm | TP-T8SMD384-22W | 384LEDs | 2300-2680lm | G13 |
| 1512mm | TP-T8SMD432-25W | 432LEDs | 2520-2920lm | G13 |
| 1779mm | TP-T8SMD432-25W | 432LEDs | 2520-2920lm | G13 |
| 2381mm | TP-T8SMD552-32W | 552LEDs | 3380-4035lm | G13 |
| 2381mm | TP-T8SMD600-33w | 600LEDs | 3600-4200lm | G13 |
| 2381mm | TP-T8SMD576-38w | 576LEDs | 2995-3456lm | G13 |
| 2381mm | TP-T8SMD644-40w | 644LEDs | 3348-3864lm | G13 |
(2) basic parameter:
| LED | Epistar 3528SMD |
| Input voltage | 85-277VAC |
| Beam Angle | 120degree |
| Power Factor | >0.85 |
| Power Efficiency | >92% |
| Material | AL+PC |
(3)PC and color temperature:
| Color Temperature | Warm White(2700-4000K) |
| Natural White(5000-5500K) | |
| Cool White(6500-7000K) | |
| Tube PC | Clear PC |
| Frosted PC |
Structure Installation:
LED T8 tube light could be installed on the T8 or T10 bracket directly, pls take down the starter before installation.
Kindly Notice: before installation, please make sure power off.
Aging & Package:
Aging:
LED T8 tube light\'s aging time is over 72hours, LED tube lights\' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.
Package Details:
White small box + Carton Package
Application:
Indoor usage, such as Room, Office, Hotel, School, Factory, Hospital, Building, Workshop, Coffee shop, Warehouse, Supermarket, Gymnasium etc.
Additional Information
| Payment Terms | T/T, Western Union, Paypal, Others |
|---|---|
| Minimum Order | 30pcs |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 4-7days for sample order; 10-20days for bulk order |
| FOB Port | Shenzhen |
| Loading Info | by Express (DHL/UPS/FedEX/TNT/EMS), by Air, by Sea |
| Packing Info | Carton package, 25pcs/CTN,469*250*250MM |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
