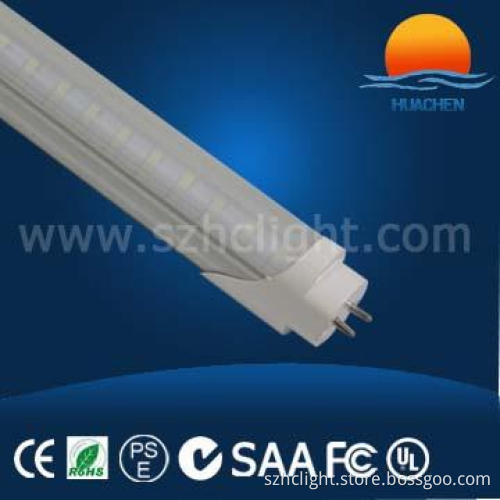

led lighting manufacturers t8 3ft 13W with CE PSE ROHS approval
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
CCT:PW/NW/WW | CRI:80 |
---|---|
Housing Lampshade | PC+Aluminum |
Lumen | 1300-1500lm |
PC Cover | Milky/Clear/Strip cover |
luminous efficiency | 100lm/W |
Life | 50000H |
Package | Yes |
Light Source Chip | Epistar |
Tube Diameter | T8 |
Lamp Base | G13 |
Color Tones | Natural White |
Illuminant | SMD |
Voltage | 110-220V |
Length | 90cm |
Power | 13W |
Detail Description
led lighting manufacturers t8 3ft 13W with CE PSE ROHS approval!
led lighting manufacturers features:
- We use high quality SMD LED as light source, which is high brightness, long life and small heat;
- Self-developd constant-current power for power supply circuit greatly improve the stability of our products. And the power is built in, increasing light-emitting area;
- Real T8Tube, and the light-emitting area just occupies 2/3 of the tube;
- Use aluminum plate, which realizes a high thermal conductivity;
- High brightness, 1.5 times more than that of traditional T8 Fluorescent tubes;
- Many choices for color: Cold White, Warm White,Pure White;
- Life span of LED is up to 50000 hours;
- High- quality PC mask ensures great euphotic rate without showing lamp beads;
- Having got CE, RoHS and FCC certifications.
.HC-T8-120-18W led tube light
led lighting manufacturers Advantages:
- Energy-Saving and environmental used;
- Low Heat Emisssion; Low energy consumption;
- Solid-state, high shock / vibration resistant;
- Maintenance free, easy installation;
- Major reduction in power costs.
Installation instructions:(led lighting manufacturers:)
- Before installation please make sure the power is turned off ;
- For magnetic ballast , when LED tubes are replaced in a standard fluorescent tube batten, the starter must be removed,and replaced by the enclosed fuse,simply and conveniently ;
- If electronic ballast , it need to be by-passed by a registered electrician.
Usage instructions:
- Take out from package carefully;
- Check if have any damage, don\'t try to use any damaged products;
- Read the label parameter carefully before installation and make sure the voltage & current are correct;
- Indoor use only;
- Don\'t vibrate tube
- Don\'t disassemble the tube if have no authorization;
- Don\'t store tubes in humidity environment.
Application Places :(led lighting manufacturers:)
- Hotels,Offices,Supermarkets
- Schools,Hospitals
- Lobbies,Halls,Squares
- Parkings,Factories,Warehouses,
- Airports ,railway stations
- Residential/institution buildings,
- Public places etc.
Product Technical Parameters:(hot sale t8 led tube light 18W)
Product Model | HC-T8-60-7W | HC-T8-60-9W | HC-T8-90-14W | HC-T8-120-12W | HC-T8-120-15W | HC-T8-120-18W | HC-T8-150-22W | HC-T8-180-28W |
Input Voltage | AC100-240V | AC100-240V | AC100-240V | AC100-240V | AC100-240V | AC100-240V | AC100-240V | AC100-240V |
Rated Power | 7W | 9W | 14W | 12W | 15W | 18W | 22W | 28W |
Dimension | ¢26*588MM | ¢26*588MM | ¢26*894MM | ¢26*1198MM | ¢26*1198MM | ¢26*1198MM | ¢26*1498MM | ¢26*1798MM |
LED Quantity | 108PCS | 144PCS | 216PCS | 192PCS | 252PCS | 288PCS | 336PCS | 432PCS |
CRI | 74-80 | 74-80 | 74-80 | 74-80 | 74-80 | 74-80 | 74-80 | 74-80 |
Luminous Flux | 550-650lm | 650-830lm | 980-1200lm | 900-1100lm | 1100-1350lm | 1450-1750lm | 1600-1900lm | 1950-2350lm |
Operating Temp | -10℃-50℃ | -10℃-50℃ | -10℃-50℃ | -10℃-50℃ | -10℃-50℃ | -10℃-50℃ | -10℃-50℃ | -10℃-50℃ |
Case Temp | MAX.80℃ | MAX.80℃ | MAX.80℃ | MAX.80℃ | MAX.80℃ | MAX.80℃ | MAX.80℃ | MAX.80℃ |
Additional Information
Payment Terms | T/T, Credit Card, Western Union, Paypal |
---|---|
Minimum Order | 5pcs,small quantity will be accepyed in trial order. |
Lead Time / Delivery Time | 3 Day(s) |
Sample Available | YES |
Delivery Details | sample:2-3days500-1000pcs:3-5days1000-2000pcs 5-7days2000-5000pcs 7-10days5000-10000days:12days. |
FOB Port | Shenzhen |
Loading Info | be air:DHL,UPS,Fedex and Other Shipping.By sea. |
Packing Info | 99*24*25cm / 25pcs/carton 13KG/Catron |
Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
