High Lumen 1200mm led bulb t8  1800lm
  • High Lumen 1200mm led bulb t8  1800lm
High Lumen 1200mm led bulb t8  1800lm

High Lumen 1200mm led bulb t8 1800lm

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

CCT 6000-6500K
Lumen 1700-2100lm
PC cover milky
Luminous efficiency >100lm/W
CRI >80
Life 50000H
Package Yes
Light Source Chip Epistar
Tube Diameter T8
Length 120cm
Lamp Base G13
Power 18w
Illuminant SMD
Color Tones Pure White
Voltage 220V

Detail Description

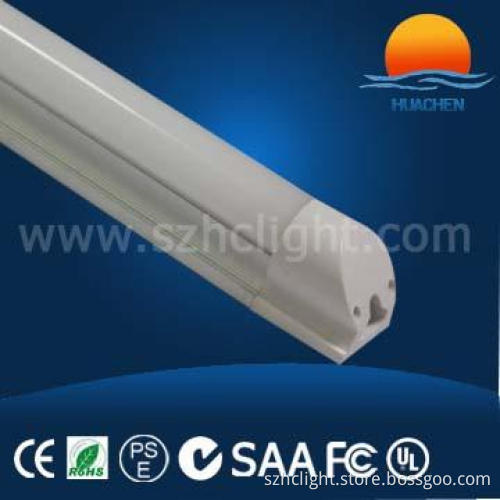

H&C t8 led bulb
feature:
   1.We use high quality SMD LED as light source, which is high brightness, long life and small heat;
2.Self-developed constant-current power for power supply circuit greatly improve the stability of our products. And the power is built in, increasing light-emitting area;
3.Real T8Tube, and the light-emitting area just occupies 2/3 of the tube;
4.Use aluminum plate, which realizes a high thermal conductivity;
5.High brightness, 1.5 times more than that of traditional T8 Fluorescent tubes;
6.Many choices for color:  Cold White, Warm White,Pure White;
7.Life span of LED is up to 50000 hours;
8.High- quality PC mask ensures great euphotic rate without showing lamp beads;
9.Having got CE, ROHS and FCC certifications.
 Advantages:
1.Energy-Saving and environmental used;
2.Low Heat Emission; Low energy consumption;
3.Solid-state, high shock / vibration resistant;
4.Maintenance free, easy installation;
5.Major reduction in power costs.

 Except for conventional LED tube, we have five other functional series:
  1. sensor system: microwave sensor system, infrared sensor system, audio sensor system
  2. dimming system: SCR dimming system, remote dimming system
  3. emergency led tube
  4. medical series
  5. led grow light series
Applications of  t8 led bulb
1.Indoor lighting(living room,bedroom,kitchen,washroom)
2.school,hospital,hotel,factories,supermarket,shopping mall,commercial complex.
3.parking lot,airport,subway station,railway station,tunnel.
4.lobby,hall,square,office.
5.residential /institution buildings.


Product Technical Parameters

T8-2835SMD:
Product Model HC-T8-60-9W HC-T8-90-13W HC-T8-120-12W HC-T8-120-15W HC-T8-120-18W HC-T8-120-23W HC-T8-150-23W HC-T8-180-28W HC-T8-240-36W
Input Voltage AC85-265V AC85-265V AC85-265V AC85-265V AC85-265V AC85-265V AC185-265V AC85-265V AC85-265V
Rated Power 9W 13W 12W 15W 18W 23W 23W 28W 36W
Dimension ¢26*598MM ¢26*898MM ¢26*1198MM ¢26*1198MM ¢26*1198MM ¢26*1198MM ¢26*1498MM ¢26*1798MM ¢26*2398MM
LED Quantity 48PCS 72PCS 96PCS 96PCS 96PCS 120PCS 120PCS 144PCS 192PCS
CRI 75-85 75-85 75-85 75-85 75-85 75-85 75-85 75-85 75-85
Luminous Flux 800-1100lm 1200-1500lm 1100-1500lm 1400-1800lm 1700-2100lm 2200-2600lm 2200-2600lm 2700-3200lm 3500-3900lm
Operating Temp -10℃-50℃ -10℃-50℃ -10℃-50℃ -10℃-50℃ -10℃-50℃ -10℃-50℃ -10℃-50℃ -10℃-50℃ -10℃-50℃
Case Temp MAX.80℃ MAX.80℃ MAX.80℃ MAX.80℃ MAX.80℃ MAX.80℃ MAX.80℃ MAX.80℃ MAX.80℃



Additional Information

Payment Terms T/T, Western Union, Paypal
Minimum Order 10 pcs
Lead Time / Delivery Time 3 Day(s)
Sample Available YES
Delivery Details based on EXW price
FOB Port Shenzhen
Loading Info By air, by sea.
Packing Info In standard cartons, also comply with customer\'s request.
Target Market(s) Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
