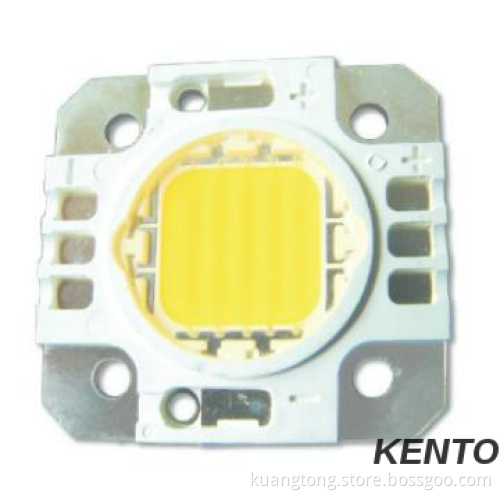

30W High Power LED TOP Package TOP Pure Bright Yellow Diffused LED

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

CCT	5300K - 6700K
50% Power View Angle	120°
Reverse Current	5uA
CRI	70Ra
Luminous Flux	2700LM-4000LM
Rated Voltage	24V
Color	White

Detail Description

30W HighPower LED TOP Package PureBright TOPLED YellowDiffused

30W High Power LED TOP Package TOP Pure Bright LED

Features:
1.More energy efficient than incandescent and most halogen lamps
2.low voltage operation
3.Instant light
4.Long operating life
5.Anti UV

Applications:
1.Display lighting
2.Advertisement
3.Architectural Lighting
4.Street Lamps
5.Commercial Lighting

NOTES:
1．All dimensions are in millimeters (inches);
2．Tolerance is ±0.10mm unless otherwise specified;
3. Specifications are subject to change without notice.

Specification:

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	30	W
Forward Current	IF	900	mA
Peak Forward Current	IFP	1800	mA
Forward Voltage	VF	30-34	V
Reverse Voltage	VR	50	V
Operating Temperature	Topr	-30℃~60℃	-
Storage Temperature	Tstg	-30℃~60℃	-
Electrostatic discharge	ESD	2600	V HBM

Additional Information

Payment Terms	L/C, T/T, Paypal, Others
Minimum Order	1000PCS
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
Delivery Details	lead time:7-15working daysCan Customized by your requirement.
FOB Port	Shenzhen
Loading Info	EXPRESSAir transportationSea transportation
Packing Info	MOQ:1000PCS
Target Market(s)	Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
