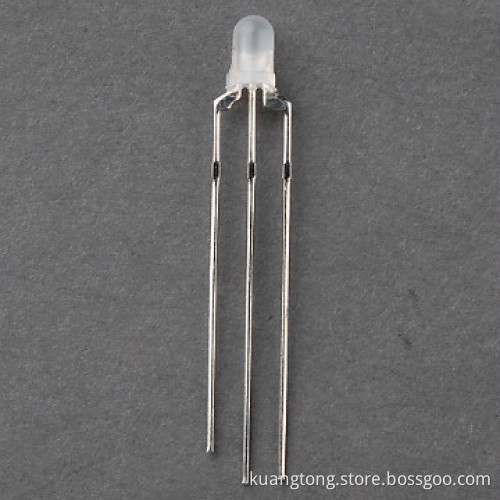

5mm round dichromatic led diode
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Type | LED |
|---|---|
| Package Type | Throught Hole |
Detail Description
LED Lamp Product specification:
Model No |
5ARG9HWB |
Emitting color |
Green+Red |
Diameter |
5mm |
Packing color |
None |
Lens color |
White Diffused |
Usage voltage(V) |
2.0-2.5 |
Current(MA) |
10 |
View angle |
150 |
Wave length(NM) |
571+644 |
Luminous intensity(MCD) |
18-40;40-80 |
Feet type |
Long feet |
Products Features:
1. Size: 3mm, 5mm, 8mm.10mm,12mm 0603, 1210/3528, 5050
2. Shapes: round, burgonet, straw cap, Super Flux, SMD, High Power
3. Emitting color: red, yellow, blue, green, white, warm white
4. Beam Angle: 15, 30, 45, 60, 80, 120 degrees
5. Wave length: 450-650nm
6. Forward Voltage: 2.0-2.4V for red, yellow color, 3.0-3.6V for white .blue, green, white
7. Forward Current: 20mA, 350mA, 700mA
8. Lens colors: water clear, color diffused
9. Life Span: 50,000HRS
10. Packing: 1000Pcs/bag
11. With CE/ROHS/ISO9001:2000 Approved
12. Luminous Intensity:
Red: 3000-4000MCD, 4000-6000MCD, 6000-8000MCD, 8000-10000MCD
Yellow: 3000-4000MCD, 4000-6000MCD, 6000-8000MCD, 8000-10000MCD
Green: 11000-13000MCD, 13000-15000mcd, 15000-18000MCD, 18000-20000MCD
Blue: 2000--3000MCD, 3000-4000MCD, 4000-5000MCD, 5000-7000MCD
White: 11000-13000MCD, 13000-15000mcd, 15000-18000MCD, 18000-20000MCD
13. Life Span: 50,000hrs
14. Packing: 1000Pcs/antistatic bag
Application:
1. Indoor and outdoor commercial lighting
2. Architectural Lighting
3. General lighting
4. Automotive lights
5. Mood Lighting, LED module
6. Traffic Light
7. LCD TV / monitor backlights
8. LED display
9. Reading light, LED torch
10. Craft flashlights, headlights
Additional Information
| Payment Terms | L/C, T/T, Paypal, Others |
|---|---|
| Minimum Order | 10000PCS |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | lead time :7-20working days according to your quantity |
| FOB Port | Shenzhen |
| Loading Info | Express Air transportationSea transportation |
| Packing Info | 1000 pieces in a antistatic bag, 0.25KG around |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
