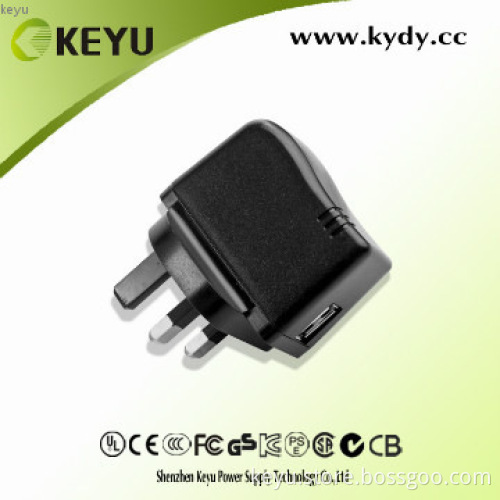

Mobile phone USB charger with GS,CE,KC,PSE certifcates
  • Mobile phone USB charger with GS,CE,KC,PSE certifcates
Mobile phone USB charger with GS,CE,KC,PSE certifcates

Mobile phone USB charger with GS,CE,KC,PSE certifcates

Get Latest Price
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Warranty 1year
Safety CE GS PSE KC CB 3C
COLOR white&black
OEM&ODM welcome
Materials ROHS&REACH
Type Universal
Use Car Charger, Desktop, Electric, Emergency / Portable, Other, Solar, Travel
Output Voltage 220
Market For Australia/New Zealand, For Brazil, For E.U., For Italy, For UK, For USA/Canada, Other
Charge Current 1000mA

Detail Description

  • Wireless communication electronics
  • Network hardware
  • Persional digital
  • Audio&Video devices
  • Medical equipments
  • Home Appliances
MODEL NO Input Voltage (Vac) Input Frequency (Hz) Output voltage (Vdc) Output Current (A) Certificate
KA01-030YYYYU/S 100-240 50/60 3.00 0-1200 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-040YYYYU/S 100-240 50/60 4.00 0-1200 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-050YYYYU/S 100-240 50/60 5.00 0-1200 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-055YYYYU/S 100-240 50/60 5.00 0-1000 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-060YYYYU/S 100-240 50/60 6.00 0-1000 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-070YYYYU/S 100-240 50/60 7.00 0-0850 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-080YYYYU/S 100-240 50/60 8.00 0-0750 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-085YYYYU/S 100-240 50/60 8.00 0-0750 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-090YYYYU/S 100-240 50/60 9.00 0-0650 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-100YYYYU/S 100-240 50/60 10.00 0-0600 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-110YYYYU/S 100-240 50/60 11.00 0-0500 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-120YYYYU/S 100-240 50/60 12.00 0-0500 CE,UL,FCC,GS,PSE,KC,CB,CCC

Type designation KA01-XXXYYYYYU,KA01-XXXYYYYYS series(\"XXX\" 030-120 digits representing the output voltage 3Vdc-12Vdc,\'\"YYYY\" 0000-1200 digits representing the output current0A-1.2A),as U represents the power output with USB port,S represents the power output with DC line port.








  • Input Voltage：100~240Vac(Range:90~264Vac).
  • Input Current：0.2A max.
  • Frequency：50/60Hz(Frequency range:47~63Hz).
  • Output voltage：3.0-12V.
  • Output current：0-1.2A.
  • Ripple & Noise：150mV max.
  • Power consumption at no load：0.3W max.
  • Conversion efficiency：〉65%.
  • Voltage regulation/Load regulation:±5%.
  • CC/CV.
  • Hi-pot test： 3000 VAC/1min/5mA.
  • Leakege current： 0.25mA max.@240 VAC.
  • With Over-current,Over-voltage,Over-temperature, Short-circuit protection function.
  • Operating temperature：0~40℃.
  • Safety standard：UL/EN60950/GB4943.
  • EMC standards：EN55022 class B/FCC Part 15 class B;EN55024/A1:2001/EN61000.
  • Applications

Additional Information

Payment Terms L/C, T/T, Western Union
Minimum Order 1000
Lead Time / Delivery Time 20 Day(s)
Sample Available YES
Delivery Details 20DAYS UPON RECEIPT OF PAYMENT
FOB Port Shenzhen
Loading Info By sea, by air,  by express.According to clients requirements and clients\' customs policy.We guarantee to give the most economic and save delivery.
Packing Info Inner packing: White box + Transparent poly bag. Outer packing: Carton 100pcs/carton in size 570*340*197mm or Carton 50pcs/carton in size 460*420*233mm
Target Market(s) North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
