200w led high bay explosion proof highbay light
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| power | 80w-200w |
|---|---|
| Power supply | Mean Well driver |
| LED source | Epistar |
| Beam angle | 100deg/60deg |
| IP Rating | IP65 |
| Application | Car Park, Petrol Station |
| Light Source | LED |
| Voltage | 90-260V |
| IP | IP65 |
Detail Description

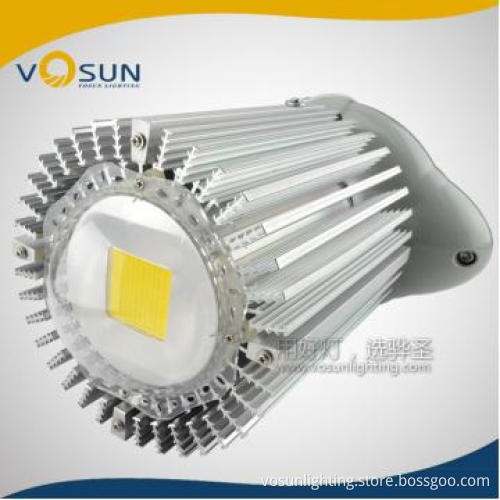

200w led high bay explosion proof highbay light
1) Anti-exprosion standard
2) Fins heating dissipation
3) CE&ROHS&PSE,IP65
4)Exprosion proof rate:ExnR II T4Gc
Specification for High Quality explosives proof lighting led high bay :
Model |
HS-FB01-200-03 |
Power |
200W |
Input Voltage |
AC85-260V |
LED Source |
Epistar |
Frequency Range |
50-60Hz |
Power Factor |
>90% |
Size |
φ400mm*H648mm |
Beam angle |
100 ° /60° |
| Explosive-proof grade: | Ex Nr II T4 Gc |
lumious |
16000-18000LM |
Working Environment |
Working temperature:-40°C~55°C |
Working humidity:10%-90% | |
Colour |
2700-3500K 4000-5500K 6500-70000K |
Working Life |
>50,000 hours |
Body &Shade Material |
Aluminum die-casting |
Protection grade |
IP65 |
Warranty |
3 Years |
Certificates |
CE & ROHS & PSE |
Application for High Quality high bay led explosion proof lighting :
The high power explosion proof led lamp provides operator with a powerful and energy efficient alternative to traditional hazardous
location luminaires. It is ideal to be used as floodlight or spotlight at the oilfield, metallurgy,refinery, gas station, oil rig, petroleum,
petrochemistry and anywhere a highly durable and efficient light source is needed that can withstand exposure to high stress
environments.
Advantage for High Quality high bay led explosion proof light :
1) It adopts America BridgeLux LED as light source, long life span ,maintenance free.
2) The anti corrosion aluminium alloy body is powder coated for added durability and an attractive aesthetic appearance.
3) The lamp is specially designed for high durability and to efficiently dissipate heat for prolonged LED life and safer operation
in hazardous locations.
4) The lamp is multi-voltage capable and can be operated with 85 to 265VAC.
5) The strong aluminium alloy body and LED lamp design give this lamp excellent durability and resistance to vibration and
impact.
6) Available in several optional mounting configurations including ceiling mounting, pendant mounting,wall mounting etc.
7) The lamp is tested to Ex d II C T6, IP67. It has two explosion proof chambers which increase the safety than the other lamps.
8) Equipped with adjustable gear that enables the operator to position lamp in any directions.
Additional Information
| Payment Terms | T/T, L/C, Others |
|---|---|
| Minimum Order | 1pc |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Delivery Details | sample:5-7daysformal order:7-15days |
| FOB Port | Shenzhen |
| Loading Info | By sea / air |
| Packing Info | 1pcs/ctn. |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
