Isolated Driver Motion Sensor PIR LED Tube T8 18W
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| LED type | 2835/3014 |
|---|---|
| LED qty | 168pcs |
| Luminous flux | 1650±5% |
| CRI | ≥75 |
| Life | 50000hours |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Length | 120cm |
| Lamp Base | G13 |
| Color Tones | Natural White |
| Power | 18w |
| Illuminant | SMD |
| Voltage | 110-220V |
Detail Description

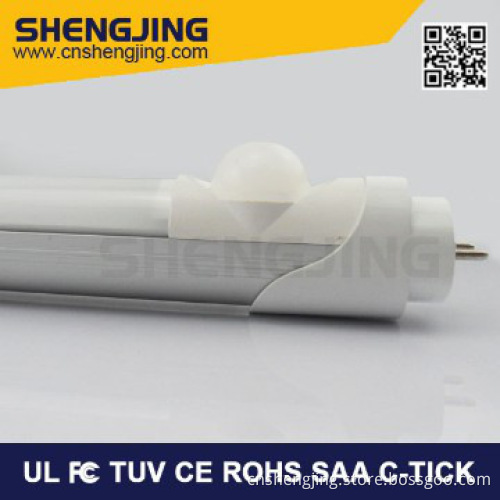

Isolated Driver Motion Sensor PIR LED Tube T8 18W
Product Size: Φ28*L1198mm
Base Type: G13
Packing: 128*19.5*22cm(20pcs/ctn)
G.W.：7.8Kg/ctn
Beam Angle：1700
Voltage：AC110/220V
Frequency：50/60Hz
Item |
Unit |
Range of parameter |
LED Type |
- |
3014 |
LED Quantity |
Pcs |
168 |
Luminous flux |
LM |
1650±5％ |
Power |
W |
18±1 |
Power Factor |
- |
≥0.9 |
Time delay |
S |
30-60 |
Sensing distance |
m |
6-12m |
Working temperature |
℃ |
-20~+45 |
Storage temperature |
℃ |
-20~+65 |
Relative humidity |
RH |
10-90％ |
CRI |
Ra |
≥75 |
CCT |
K |
3000-6500 |
Lifespan |
Hrs |
50000 |
Function of Motion Sensor PIR LED Tube
1. When no one or vehicles pass, infrared induction LED tube are dormant, each lamp power consumption is 3-5W, not only meet the requirements of security monitoring lighting, but also save electricity at great extent;when someone or a vehicle passes, the low brightness sensor LED tube will be awakened automatically to lighten, power change to 18W
2. Repeatable trigger mode: during the delay time(delay time can adjust according to customer requirement,normally use 60s mode), if some one are in the sensing distance, the tube will keep light but it will turn off in 60 seconds after person or car left( It will be automatically postponed to a delay period after it sense the human body every time and the delay time starting from the the end of last activity time)
Application
1. Replace incandescent light bulb and energy saving lamps directly.More energy saving, environment friendly and longer lifespan make it more efficiency
2. Widely used in Balcony, corridors, stairwells, parking lot, ect
More information for motion sensor led tube
Additional Information
| Payment Terms | T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 20 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 3-7 days for samples, 15-20 days for mass production |
| FOB Port | Shenzhen |
| Loading Info | By Express,Air or Sea |
| Packing Info | 600MM Tube : 20pcs/CTN,67*21*25CM1200MM Tube : 20pcs/CTN,129*21*25CM1500MM Tube : 20pcs/CTN,157*21*25CMTube protected by foam inside of the box,wood carton available |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
