TUV SAA PIR smart led tube with 3 years warranty

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

CRI	≥75
LED type	2835/3014
LED qty	168pcs
Luminous flux	1620±5%
Life	50000hours
Package	Yes
Light Source Chip	Epistar
Tube Diameter	T8
Color Tones	Warm Color
Length	120cm
Lamp Base	G13
Voltage	90-260V
Power	18w
Illuminant	SMD

Detail Description

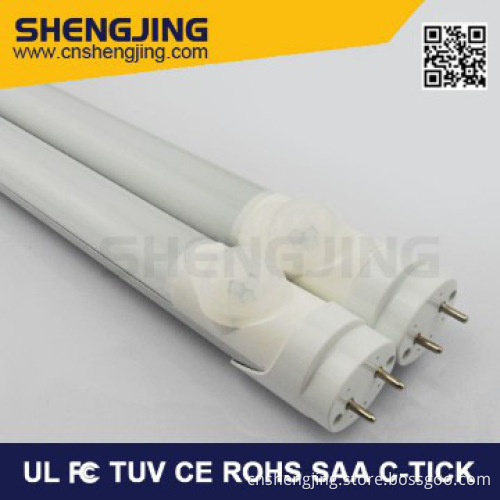

This isolated driver PIR sensor smart led tube has infared sensor. It is widely used for garage, corridor, basement, warehouse, hospital and the places requiring 24hrs lighting and energy saving.

Isolated driver PIR sensor smart led tube descriptions:

1. Induced by Infrared ray.
2. Cars or person coming to activate the Tube to full working load at power 18W.
3. While cars or person left the inductive area, 2~60 seconds later it will be at 3W or custom power ratings.
4. According the experience, use the infrared led tube can save more than 90% energy.

Specification of isolated driver PIR sensor smart led tube

Product Size: Φ28*L1198mm
Base Type: G13
Packing: 128*19.5*22cm(20pcs/ctn)
G.W.：7.8Kg/ctn
Beam Angle：1700
Voltage：AC110/220V
Frequency：50/60Hz

Item	Unit	Range of parameter
LED Type	-	3014
LED Quantity	Pcs	168
Luminous flux	LM	1440±5％
Power	W	18±1
Power Factor	-	≥0.9
Time delay	S	30-60
Sensing distance	m	6-12m
Working temperature	℃	-20~+45
Storage temperature	℃	-20~+65
Relative humidity	RH	10-90％
CRI	Ra	≥75
CCT	K	3000-6500
Lifespan	Hrs	50000

Function

1. When no one or vehicles pass, infrared induction LED tube are dormant, each lamp power consumption is 3-5W, Not only meet the requirements of security monitoring lighting, but also save electricity at great extent, when someone or a vehicle passes, the low brightness of the infrared induction LED tube will be awakened automatically to lighten, power is 18W

2. Repeatable method: during the delay time, if some one are in the sensing distance, the bulb will keep light but it will turn off in 60 seconds after the one left( It will be automatically postponed to a delay period after it sense the human body every time and the delay time starting from the the end of last activity time)

Application

1. Replace incandescent light bulb and energy saving lamps directly.More energy saving, environment friendly and longer lifespan make it more efficiency

2. Widely used in Balcony, corridors, stairwells, parking lot, etc

Side view

Vertical illuminance diagram

Dimension drawing (Unit: mm)

Notice

1. LED fluorescent tube light should be used at indoor or non-waterproof place.

2. Used in the defined voltage input range.

3. Do not use fabric covering or other things when light working.

4. Any of the following situation occurs , please disconnect the power , and contact the original factory: power cable or power supply is damaged, liquid infiltration Products ( rain or flooding ), dropped or the casing damaged, other shows when it is in need of repair.

5. There is high voltage within the product, In order to avoid accidents which prohibit to disassemble by yourself.
