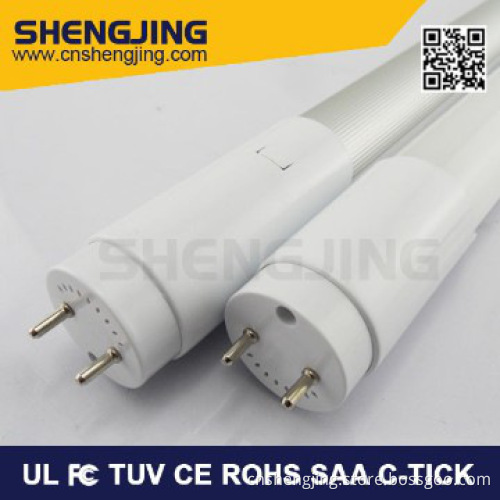

2835 led tube 1500mm t8 UL CE FCC ROHS Listed
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Color | White |
|---|---|
| Power | 22W |
| Life | 50000hours |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Power | 22w |
| Lamp Base | G13 |
| Voltage | 90-260V |
| Illuminant | SMD |
| Length | 150cm |
| Color Tones | Pure White |
Detail Description
2835 led tube 1500mm t8 UL CE FCC ROHS Listed
Specifications:
T8 2ft /1500mm 22w led tube light
120pcs Epistar SMD 2835
110LM/W
AC85-265V
Product Size: Φ28*L1498mm
N.W.：470g
Package Size: 154.5*19.5*22cm(20 pcs/ctn)
G.W.：11Kg/ctn
Beam Angle：1700
Frequency：50/60Hz
Item |
Unit |
Range of parameter |
LED Type |
- |
2835 |
LED Quantity |
Pcs |
120 |
Luminous flux |
LM |
1980±5％ |
CRI |
Ra |
≥75 |
Color Temperature |
CCT |
3000~3500k
4000~4500k
5500~6500k |
Power |
W |
22±1 |
Power Factor |
- |
≥0.90 |
Working Temperature |
℃ |
-20~+45 |
Storage Temperature |
℃ |
-20~+65 |
Relative Humidity |
RH |
10-90％ |
Lifespan |
Hrs |
50000 |
Product Features:
The solder-free end cap and the pluggable led driver is an integrated whole, within only
1 minute you can replace the driver without any soldering!
LM80 passed SMD2835, long lifespan and low light decay
Good heat dissipation, the highest surface temperature is ＜ 50°C!
UL listed and PICC insurance covered, double safety guarantee!
| Length | Model | Power | CRI | Luminous Flux | Voltage |
| 0.6m | SJ-UQ-9W-54 | 9W | ≥70 | 810±5％ | 120~277V/110V |
| SJ-UQ-9W-72 | 9W | ≥80 | 900±5％ | ||
| SJ-UQ-9W-90 | 9W | ≥80 | 950±5％ | ||
| 1.2m | SJ-UQ-18W-100 | 18W | ≥70 | 1620±5％ | 120~277V/110V |
| SJ-UQ-18W-120 | 18W | ≥70 | 1710±5％ | ||
| SJ-UQ-18W-140 | 18W | ≥80 | 1800±5％ | ||
| SJ-UQ-18W-160 | 18W | ≥80 | 1890±5％ | ||
| SJ-UQ-18W-180 | 18W | ≥80 | 1980±5％ | ||
| 1.5m | SJ-UQ-22W-110 | 22W | ≥70 | 1980±5％ | 120~277V/110V |
| SJ-UQ-22W-132 | 22W | ≥70 | 2090±5％ | ||
| SJ-UQ-22W-154 | 22W | ≥80 | 2200±5％ | ||
| SJ-UQ-22W-176 | 22W | ≥80 | 2250±5％ | ||
| SJ-UQ-22W-198 | 22W | ≥80 | 2350±5％ |
We are a professional LED lighting company headquartered in Shenzhen, China, since 2007.
1. Certification: SGS IS09001 certified and most of our products have passed the EU, US, Australia and Japan certificates such as TUV, CE, ROHS, SAA, UL & PSE.
2. 7 Years’ Expertise in LED Lighting Products
3. Main Products: LED tube, LED panel light, LED high bay & smart LED lightings.
4. Main Customers: Over 1000 retailers in China, 3 oversea distributors and contract supplier for one of the biggest American Electronic retailer.
5. OEM &ODM service available
6. Short Lead Time
All our products are covered by PICC insurance, your business with us is safe! Contact us now!
Additional Information
| Payment Terms | T/T, Western Union, Paypal, Others |
|---|---|
| Minimum Order | 20 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 3-7 days for samples, 15-20 days for mass production |
| FOB Port | Shenzhen |
| Loading Info | By Express,Air or Sea |
| Packing Info | 600MM Tube : 20pcs/CTN,67*21*25CM1200MM Tube : 20pcs/CTN,129*21*25CM1500MM Tube : 20pcs/CTN,157*21*25CMTube protected by foam inside of the box,wood carton available |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
