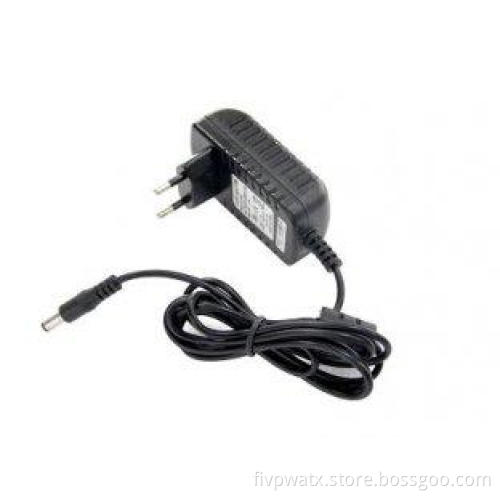

Switching 24 W LED AC DC Power Adapter 12V 50Hz Low Noise ,
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen China |
|---|
Over-current Protection Switching AC DC Power Adapters 24W 12V 2A 50Hz IP54 EN61347-2-13
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
Switching 24 W LED AC DC Power Adapters 12V 50Hz Low Noise , Short-Circuit Protection
Competitive Advantage:
1.built-in EMI filter
2.100% load test
3.Full range of input voltage
4.output voltage accurate and stable
5.Output over-voltage, over-current and short-circuit protection
6.Output low ripple and noise
7.Two year warranty
8.Average working no trouble ＞50, 000 hours
Specifications:
|
Product Electric Parameters |
||
|
Input specification |
Input voltage |
AC110V---220V |
|
Input frequency |
50-60Hz |
|
|
Input surge |
20A@120VAC 40A@230VAC |
|
|
Output specification |
Output voltage can be adjusted |
±10% |
|
Start-up time |
≦1S(input230V Io=100%) |
|
|
keep time |
≧20mS (input230V, Io=100%) |
|
|
Voltage regulation |
(Full load) ≦0.5% |
|
|
Protection function |
Overload protection |
105% - 150% rated power, automatic recovery |
|
Over-voltage protection |
105% - 150% of the rated voltage |
|
|
Insulation intensity |
Input---output |
1500VAC/1min |
|
Input---ground |
1500VAC/1min |
|
|
Input---ground |
500VAC/1min |
|
|
Safety standards |
According with GB4943, EN60950-1 standards. |
|
|
E M C standards |
According with EN55022 class A EN61347-2-13:2008 standards |
|
|
Environmental |
working temperature |
- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
|
Storage temperature |
- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost) |
|
|
height above sea level |
≦2000M |
|
|
Structure |
Size (mm) |
85(L)*43(W)*30(H) |
|
Cooling method |
Cooling method |
Natural cooling air convection |
|
Weight |
0.145KG/PCS |
|
