Product overview

The State Science and Technology (VB) computer terminal of the R & D and production; thin client computer; cloud computing; cloud terminal; sharing computer; computer towing machine card; series equipment, product stability, excellent performance, power
A strong, good hardware compatibility. The maximum can support up to 200 users at the same time, the use of a computer. Support all Windows operating system, Linux operating system support. The product of independent research and development,
Independent intellectual property rights, exquisite appearance, PVC panel, sturdy and durable, to ensure good heat dissipation and anti radiation ability. Superior stability, continuous operation test of 7X24 hours, no failure record.
Products overview.
VB-1037U series of computer terminals, using Intel Intel Celeron 1037U dual core 1.8GHz processor and embedded CPU, high frequency of dual core 1.8GHz, smaller shape; the lower TDP power optimization, intuitive interface, easy operation, excellent performance, data pre fetching function enhancement and enhanced register access manager. The launch of Intel Atom processor is the smallest processor, using the world's smallest transistor was constructed, using Intel's industry leading 32 nm -k metal gate process. The motherboard using Mini-ITX specifications, passive noiseless heatsink, no cooling fan, the lowest noise. It can be used as an independent terminal, also can connect to a server, the use of server resources, its processing capacity and the application loads are mainly rely on the server finish. Because the user does not need to thin client VB-1037U application software, also do not need what parameters or switch settings, so basically do not need maintenance and technical support, which can put equipment total cost of ownership (TCO) reduced to a minimum.
Two. The characteristics of the product
High performance, excellent multimedia playing function
Using Intel Celeron 1037U dual core 1.8GHz processor and embedded CPU, high frequency of dual core 1.8GHz, with 2*512KB level two cache, strong processing ability. At the same time supporting hyper threading (HT) technology has excellent performance, energy efficiency, and the multi task environment have a stronger response capability of the system. Graphics built Intel HD Graphics core of the show, the default 256M memory, up to 1024M, support 1920*1080. Powerful multimedia playback, support for multiple HD playback formats, audio, video playback can be realized smoothly.
Models design

The product uses the mini type chassis, bulk is less than ordinary host 1/4, effectively help users to liberate desktop space.

Multi interface, scalability

Support 2 serial port (optional), 8 USB2.0 interface, memory can support maximum to 4G, to meet various application needs of customers.

Energy saving, reduction of TCO

Intel embedded Celeron CPU and mobile Intel graphics built Intel HD Graphics core of the show, the default 256M memory, up to 1024M, support for 1920*1080, the total TDP is only 15W. Products while improving the computing performance reduces the power consumption of the system, not only more environmental protection and energy saving, but also reduce the cost of operation of the IT system.

The failure rate is low, the management is convenient

Management and convenient operation, strong controllability, and low maintenance cost, can guarantee the normal work in wide temperature and harsh environments; the machine itself without

Hardware upgrades and maintenance, system maintenance and only need to upgrade or extension to the terminal server.

Strong safety

Thin client using the embedded operating system command system of self definition and independent research and development, and there is no floppy drive and CD-ROM and other external storage equipment

Preparation, users don't have to worry about the harm and loss of virus information, can be designed into double net export support internal and external physical isolation of network.

Three. The product function:

Can be used as a stand-alone use;

Functions can be customized as needed,

Starting interface customization of OEM information,

Optional system protection, avoid virus intrusion system, reduce maintenance

Can be connected to Microsoft Windows 2000 Server, Windows Server 2003 and Linux server

Support multiple terminal emulation standard

Support local printer, IC card reader, modem, touch screen

Support the use of Modem remote dial up login server

Support 16 bit stereo full play function

Elastic choice of any manufacturer VESA standard display, support for 32 bit true color display mode

The built-in IE6.0/7.0 browser, local easily support application system with B/S structure

Can be built in Media Player 9, support for streaming video on demand

Windows embedded XP embedded operating system, the integration of RDP and ICA protocol

The application field of four:

Network education terminal: machine with multimedia classrooms, electronic reading room, the electronic library, training

Government: e-government, OA office system, financial window position

Office machine enterprises and units

Professional application window industry

The hotel guest room management, internet terminal

Other concentration field of application

Five. Product advantage:

The computing ability of Intel? Celeron 1037U dual core 1.8GHz processor, have stronger operation ability,
Video processing perfect decoding Blu ray HD, 1080P hard decoding. Preparation of HDMI interface, can be connected with the support of HDMI interface and video equipment can be set up, have a fever class home theater, support all major 3D game
Cost savings with low power consumption, saving up to 70% of the total cost of,
Ultra quiet operation no cooling fan, no noise interference, give you a quiet and cool office environment
Remote access through the Internet access to home or office of the host, another host can browse and control workstation

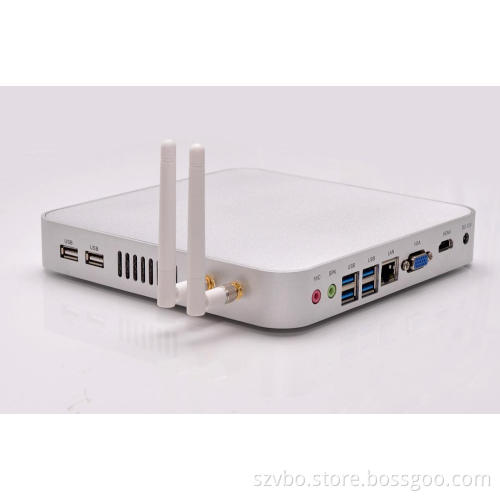

Product picture six:

Seven. Product specifications:
Size 205mmx 140mmx40mm
Packing size
The weight of 800g
Power 17W
CPU Intel? Celeron 1037U dual core processor 1.8GHz
Memory comes standard with 2G
Support for DDR3 1333/1066 MHz
1 x DDR3 DIMM memory slots
The maximum memory capacity is 8GB
Intel NM70 chip set
Storage device.
