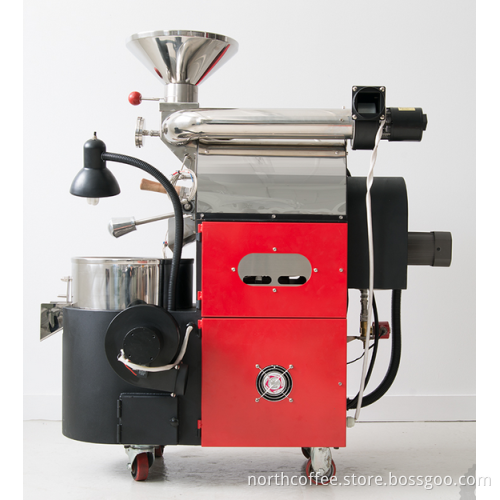

2kg Coffee Roasting Machine/2kg Coffee Bean Roaster

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

NC-002 2kg Gas Coffee Roaster Parameters
Roaster Dimensions:	33.9×27.6×39 in (860×700×1000mm)
Roaster Weight:	220.5lb (100kg)
Chaff Collector Dimension:	30.7×13.4×17.7 in(78×34×45mm)
Chaff Collector Weight:	44.1lb (20kg)
Net/Gross Weight:	264.6/352.8lb (218/270kg)
Crate Dimension(One Crate):	47.2×43.3×45.3lb (1200×1100×1150mm)
Drum Thickness:	0.2 in (4mm)
Drum Diameter/Length:	8.6/10.6 in (218/270 mm)
Drum Construction:	430 stainless steel, welded
Cooling Tray Diameter:	12.4 in (315mm)
Cooling Tray Stirring Arm Length:	5.1 in (130mm)
Average Roasting Time:	15 minutes batch
Production:	17.6lb/hr,141.1lb/day (8kg/h, 64kg/day)
Roaster Voltage/Frequency:	Single phase 220v,15 amp service 50-60Hz
Step-up Transformer:	120v to 220v, 1000 watt
Drum Motor	45w
Exhaust Fan Motor:	50w
Exhaust Fan Max. Airflow:	70m³/h
Cooling Fan Motor:	50w
Cooling Tray Stirring Motor:	15w
Heating Mode:	Natural Gas or Propane
Max. BTU:	30,000
Burner Control:	Ball Valve
Gas Connection:	3/8'' NPT
Typ. Chaff Collector Exhaust Temp:	300F(during normal use)
Recommended Temp Controller Limit:	455F (about 30 seconds into rolling second crack)
Max. Gas Usage	1.1lb/hr (0.5kg/h)
USB Logging Interface:	Phidget 1048
Logging Thermocouples:	BT,ET, incoming air
