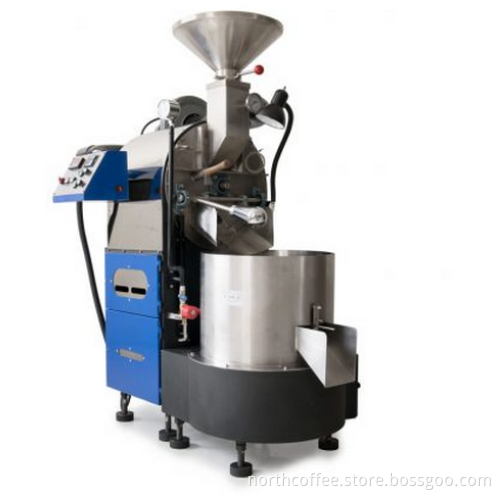

6kg Coffee Roasting Machine/6kg Commercial Coffee Roaster

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

6kg-1 6kg-2

NC-006 6kg Gas Coffee Roaster Parameters
Roaster Dimensions:	59.8×37.8×65 in (1520×960×1650mm)
Roaster Weight:	777.1lb (350kg)
Chaff Collector Dimension:	19.7×59.1 in(500×1500mm)
Chaff Collector Weight:	92.6lb (42kg)
Net/Gross Weight:	1194.9/1322.8lb (542/600kg)
Crate Dimension(Three Crates):	57.5×41.7×74.8lb (1460×1060×1900mm)
	52.8×33.5×38.6lb (1340×850×980mm)
	63.8×31×28lb (1620×787×710mm)
Drum Thickness:	0.2 in (6mm)
Drum Diameter/Length:	13.8/15.7 in (350/400 mm)
Drum Construction:	430 stainless steel, welded
Cooling Tray Diameter:	15.7 in (400mm)
Cooling Tray Stirring Arm Length:	11.8 in (300mm)
Average Roasting Time:	15 minutes batch
Production:	52.9lb/hr,423.3lb/day (24kg/h, 192kg/day)
Roaster Voltage/Frequency:	Single phase 220v,15 amp service 50-60Hz
Step-up Transformer:	120v to 220v, 1000 watt
Drum Motor	400w
Exhaust Fan Motor:	750w
Exhaust Fan Max. Airflow:	200m³/h
Cooling Fan Motor:	400w
Cooling Tray Stirring Motor:	400w
Heating Mode:	Natural Gas or Propane
Max. BTU:	60,000
Burner Control:	Ball Valve
Gas Connection:	3/8'' NPT
Typ. Chaff Collector Exhaust Temp:	300F(during normal use)
Recommended Temp Controller Limit:	455F (about 30 seconds into rolling second crack)
Max. Gas Usage	2.2lb/hr (1kg/h)
USB Logging Interface:	Phidget 1048
Logging Thermocouples:	BT,ET, incoming air
