P16 EMC stadium LED display
- Payment Type:
- T/T
- Incoterm:
- FOB
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | EMC |
| Transportation: | Ocean,Land,Air |

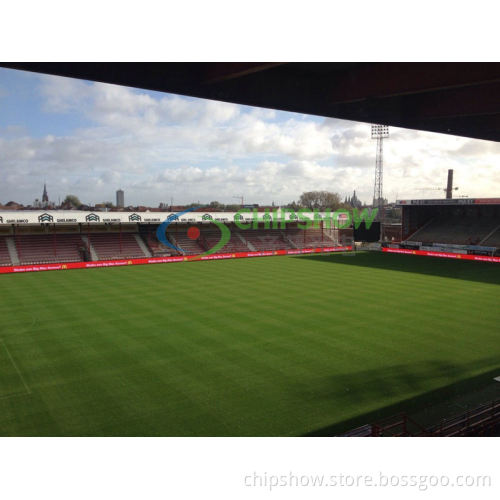

p16 outdoor EMC stadium LED display
1.High brightness.
2.Steady performance. with EMC certificate.
3.soft mask and the soft bracket to protect the LED display from crecking.
4.EMC certificate.
|
Technical parameter: |
|
Items |
p16 outdoor EMC stadium LED display |
|
Pitch size |
16mm |
|
Module size |
320mm*320mm |
|
Module pixel(dots) |
20*20 |
|
Pixel configuration |
1Red,1Green,1Blue , DIP 346 |
|
LED chip |
Epistar |
|
Color scale |
65536degree/1.07 billion colors |
|
Pixel density |
3906pixels/square meter |
|
View angle(H/V) |
110/50degree |
|
Brightness |
≥6500cd/sqm |
|
Brightness adjustment |
100level automatic or manual |
|
View distance |
8--160m |
|
Power consumption |
746W/sqm |
|
Net weight |
<50kg/square meter |
|
Operating temperature |
-25°C~+60°C |
|
Operating humidity |
10%-95%RH |
|
Life time |
≥100,000hours |
|
Out of control dot |
≤3/10,000 |
|
Whole Display Flatness |
≤1mm Juncture |
|
Exchange frame speed |
>150frames per second |
|
Refresh frame frequency |
800Hz |
|
Control distance |
Cat. 5: 120m (without repeater), single mode fiber:20km,multi mode fiber: 500m |
|
Power |
110V/220V±15% 50Hz |
|
Operating system |
Windows98/Me/2000/Xp |
|
Drive mode |
constant current driving, static scan |
|
Display mode |
VGA640X480-VGA1600X1024 |
|
Protections for outdoor display |
IP65 for front, IP64 for rear |
|
Maintenance way |
rear access, outdoor fixed installation, for stadium use |
|
Accepting signal |
PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
