Indoor P6 LED display
- Payment Type:
- T/T
- Incoterm:
- FOB
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | T/T |
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description

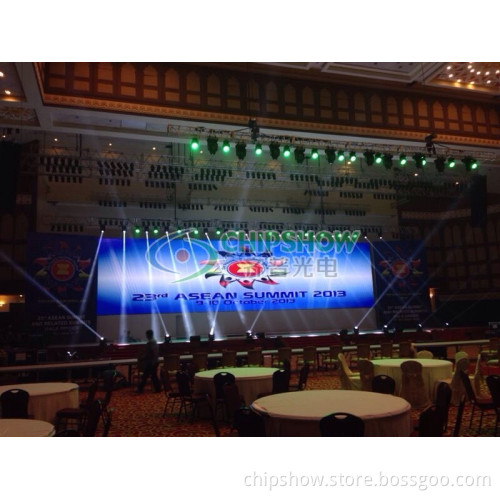

p6 indoor led video screen
1.High pixel density.
2.Steady performance.
3.Fresh&beautiful images.
4.CE,RoHS,FCC.
|
Technical parameter: |
| Items | p6 indoor led video screen |
| Pitch size | 6mm |
| Module size | 192mm*96mm |
| Module pixel(dots) | 32*16 |
| Pixel configuration | 1Red,1Green,1Blue SMD 3-in-1 |
| LED chip | Silan/Cree/Nichia |
| Color scale | 65536degree/1.07 billion colors |
| Pixel density | 27777pixels/square meter |
| View angle(H/V) | 120/120degree |
| Brightness | ≥1200cd/sqm |
| Brightness adjustment | 100level automatic or manual |
| View distance | 3--150m |
| Power consumption | 100-1200W/sqm |
| Net weight | <45kg/square meter |
| Operating temperature | -25°C~+60°C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| Out of control dot | ≤3/10,000 |
| Whole Display Flatness | ≤1mm Juncture |
| Exchange frame speed | >150frames per second |
| Refresh frame frequency | 800Hz |
| Control distance | Cat. 5: 120m (without repeater), single mode fiber:20km,multi mode fiber: 500m |
| Power | 110V/220V±15% 50Hz |
| Operating system | Windows98/Me/2000/Xp |
| Drive mode | constant current driving, static scan |
| Display mode | VGA640X480-VGA1600X1024 |
| Protections for outdoor display | IP43 for front, IP31 for rear |
| Maintenance way | rear access, haging installation |
| Accepting signal | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
