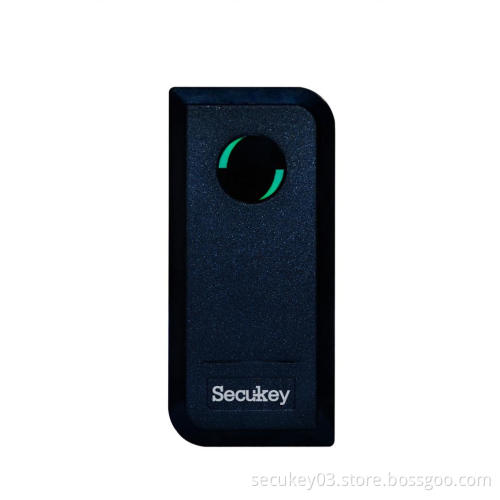

Wiegand Reader (EM+HID)

S1-R:

Main features:

Waterproof, conforms to IP 66

Read both 125 KHz EM card & HID card

Reading range: 3-8 cm

26 bit Wiegand output default (26~37 bit available upon request)

External LED control & buzzer control

Operating voltage: 9~18 V DC

Operating temperature: -40 ℃ ~60 ℃

Dimension: 4.8 W x 10.3 H x 2.0 D (cm)

Specifications:

Model: S1-R

Operation Voltage: 9~24V DC

Standby Current: ≤25mA

Frequency: 125 KHz

Card Type: 125 KHz EM Card & HID Card

Read Range: Up to 2.8 inches (7cm)

Output Format: 26bits Wiegand (default)

27~37 bit available upon request

Input: LED Control & Buzzer Control

Operating Temperature:-40℃~60℃

Operating Humidity: 10% to 95% RH

Color: Black (White optional)

Index of Protection: IP66

Dimension (W x H x T): 48 x 102 x20 mm

Net Weight:100g

Shipment Weight: 150 g

Warranty:
3years

Certificate:
CE, RoHS approved
