Standalone/Controller/Reader

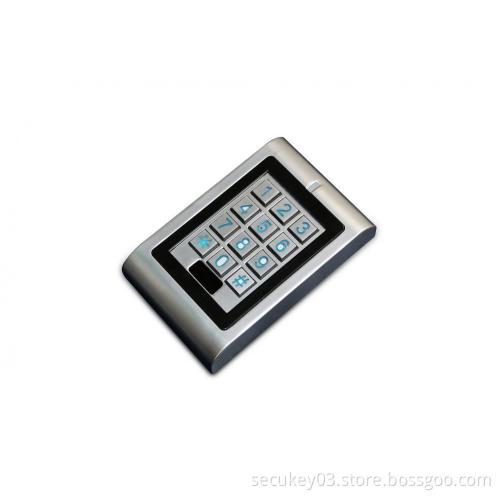

SK1-W Standalone/Controller/Reader

Main Features:

Waterproof, meets IP66

Vandal Resistant Metal Enclosure

One Programmable Relay Output

Stand Alone or Pass-Through Operation

1000 Users (Card/PIN/Card + PIN)

Latch Mode to hold door or gate open

Wiegand 26 bits input & output

Facility code programmable

Card Block enrollment

Integrated Alarm Buzzer & Output

Low power consumption (55mA)

Anti-Tamper Alarm

Backlit Keypad

Multi-color LED status display

12-24V DC/ 12-18V AC Power input

Specifications:

User Capacity: 1000 Cards/PINS

Operating Voltage: 12~24V DC/ 12-18V AC

Idle Current: 55mA

Active Current : 80mA

Keypad: 12 Key (3*4)

PIN length: 4-6 digits

Proximity Card Reader: EM

Radio Technology: 125KHz Industry Standard Proximity Card

Read Range: 3-6cm

Wiring Connections: Electric Lock, Exit Button, DOTL, External Alarm, Wiegand (in/out)

Relay: ONE (NO, NC, COM)

Adjustable Relay Output Time: 1-99 Seconds (5 seconds default)

Adjustable Alarm Output Time: 1-3 minutes (1 minute default)

Lock Output Load: 3 Amp Maximum

Alarm Output Load: 3 Amp Maximum

Wiegand Interface Wiegand 26 bit input/output

Environment: Meets IP66

Operating Temperature:-30℃~60℃, or-22°F~140°F

Operating Humidity: 10% ~ 90% Non-Condensing

Surface Finish: Zinc-Alloy Enclosure

Dimensions: L 120* W 76 * H 25 (mm)

Unit Weight:600g

Shipping Weight: 700g

Warranty:
2 years

Certificate:
CE, RoHS approved
