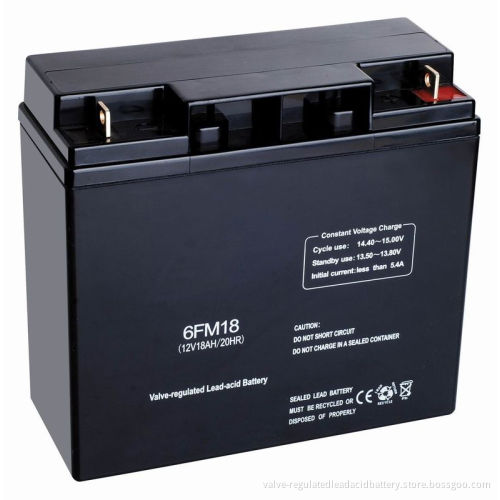

ABS 12v 18ah UPS Lead Acid Battery Valve Regulated Hybrid for Telecommunications

Description:
• Positive and negative plates in lead-calcium tin alloy
• Superior energy density and very high power output
• Operates at a low internal pressure
• High rate VRLA battery 12v18ah
• Gas Recombination
• A recognized component of UL V0 standard for option
• Lead calcium grids for extended life 12 months shelf life at 20oC
• Power rang from 13W to 890W per cell for 10' @ 1.60Vpc
• Designed life: HP-5 years/HF-10 years

Applications:

Telecommunications
Offline or standby UPS
Online UPS
Line-interactive UPS
Hybrid (double conversion on demand) UPS
DC power UPS
Diesel rotary UPS

Specifications:

The new Himalaya high rate VRLA batteries are specially designed for applications that require high power output.
By optimum design of battery grids and plate paste formula,
the H series can deliver up to 40% more power than Himalaya standard high rate series

High Rate Discharge VRLA battery
Type	Nominal Voltage (V)	Nominal Capacity /WPC 10min 1.60V	Nominal Capacity /AH	Length		Width		Height		Total Height		Terminal	Weight (Approx)
Type	Nominal Voltage (V)	Nominal Capacity /WPC 10min 1.60V	Nominal Capacity /AH	mm	in	mm	in	mm	in	mm	in	Terminal	Kg	Pound
3FM4.5H	6	25	4.5	70	2.76	47	1.85	101	3.98	107	4.21	F1	0.85	1.87
6FM2.3H	12	13	2.3	178	7.01	35	1.38	61	2.4	67	2.64	F1	0.99	2.18
6FM4.5H	12	22	4.5	90	3.54	70	2.76	101	3.98	107	4.21	F1/F2	1.72	3.79
6FM5H	12	30	5	90	3.54	70	2.76	101	3.98	107	4.21	F1/F2	1.8	3.97
6FM6H	12	35	6	151	5.94	52	2.05	94	3.7	99	3.9	F1/F2	2.18	4.81
6FM8H	12	46	8	151	5.94	65	2.56	94	3.7	100	3.94	F1/F2	2.62	5.78
6FM9H	12	50	9	151	5.94	65	2.56	94	3.7	100	3.94	F1/F2	2.8	6.17
6FM12H	12	60	12	151	5.94	98	3.86	95	3.74	101	3.98	F2	3.67	8.09
6FM17H	12	105	18	181	7.13	77	3.03	167	6.57	167	6.57	F13	5.9	13.01
6FM20H	12	116	20	181	7.13	77	3.03	167	6.57	167	6.57	F13	6.5	14.33
6FM24H	12	135	24	166	6.54	175	6.89	125	4.92	125	4.92	F13	9	19.84
6FM28H	12	155	28	165	6.5	125	4.92	175	6.89	175	6.89	F13	9.5	20.94
6FM33H	12	165	33	195	7.68	130	5.12	155	6.1	168	6.61	F11	11.1	24.47
6FM45H	12	211	45	197	7.76	165	6.5	170	6.69	170	6.69	F11	14.8	32.63
6FM55H	12	260	55	229	9.02	138	5.43	208	8.19	213	8.39	F11	17.2	37.92
6FM75H	12	320	75	258	10.16	166	6.54	206	8.11	215	8.46	F11	24	52.91
6FM80H	12	370	80	350	13.78	167	6.57	179	7.05	179	7.05	F11	26.2	57.76
6FM90H	12	420	90	306	12.05	169	6.65	210	8.27	215	8.46	F21	30	66.14
6FM100H	12	470	100	330	12.99	171	6.73	215	8.46	220	8.66	F12	33	72.75
6FM120H	12	560	120	410	16.14	176	6.93	227	8.94	227	8.94	F12	37.7	83.11
6FM134H	12	600	134	341	13.43	173	6.81	283	11.14	287	11.3	F12	41.5	91.49
6FM135H	12	605	135	482	18.98	170	6.69	241	9.49	241	9.49	F12	44.8	98.77
6FM150H	12	650	150	485	19.09	172	6.77	240	9.45	240	9.45	F12	46.4	102.29
6FM170H	12	725	170	530	20.87	209	8.23	215	8.46	220	8.66	F12	55.7	122.8
6FM185H	12	810	185	522	20.55	239	9.41	218	8.58	223	8.78	F10	66.5	146.61
6FM200H	12	890	200	522	20.55	238	9.37	218	8.58	223	8.78	F10	67.5	148.81
6FM210H	12	1010	210	522	20.55	238	9.37	218	8.58	223	8.78	F10	67	147.71

Competitive Advantage:

Cast welding technology
First class ABS container
Top lead of purity 99.994%
Low self-discharge
Long service life
Capable of high discharge rates
Manufacture with more than 10 years history
Capable of high discharge rate
Best cost performance
