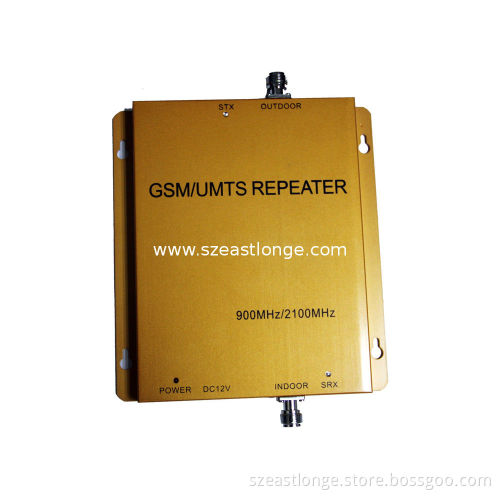

UMTS980 / GSM Repeaters , UMTS Dual Band Mobile Phone Signal Repeater with 2000sqm Coverage

1.Quik details
Model:EST-GSM/UMTS980
Frequency:900/2100MHz
coverage:2000sqm
color:golden

2.2.Specification

Introduction To Mobile Phone Signal Repeater

1. Enhance Mobile Phone
Signal Strength

2. Improve
Communication
Quality

3. Reduce
Cellphone
Radiation

4. Protract
Cellular Battery Life

5. Economic Building Cost

6. Easy Operation

7. Easy Installation

8. Build-in Power Supply

The device featured by easy installation & operation and no interference. It is the ideal device for boost mobile phone signal. A mobile phone repeater could also improve indoor ctromagnetism environments, protract cellular battery life and reduce radiation of cellphones.

2. Features

High gain, easy installation and operation.

Full-duplex, single-port design, build-in power supply.

Use ALC technology, adjust extent automatically

LED Light Working & Signal Condition Indicators

Big linear power, control intermodulation & scatteration stably

Dependability stand by GB6993-86 standard

Compatibility of electromagnetism according with ETS300 609-4

CE and RoHs Approved

3.Technique

Frequency range	Uplink 890-915MHz 1930-1990MHz Downlink 935~960MHz 2110-1180MHz
Gain ( dB)	Uplink Gp≥60 Downlink Gp≥65
Export power (Po)	≥27dBm
Pass band ripple	≤3dB
I/O impedance	50Ω/N connector
Noise figure	≤4dB
Transmission Delay	≤0.5μs
Ambient temperature	-10℃～60℃
Power supply	AC110～240V 45～55Hz
Size	220 x180 x 20 mm
Reliability	To the GB6993-86 standard
Electromagnetic compatibility	To the ETS300 694-4 standard
Function	a) Power supply LED denote b) Export power LED denote
coverage area	2000 m

4.Installation Sketch Map

Installation Approaches

Fix up outdoor antenna reception on housetop and point to signal tower.
Connect outdoor antenna to “outdoor” port in repeater machine through cable.
Connect indoor antenna(s) to “indoor” port in repeater machine through cable also.
Plug power adaptor into AC power socket and finish installation.

Technique Supporting

If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
If can not call out, please adjust the direction of outdoor antenna.
If strength is not steady, please check if outdoor & indoor antennas are too close. Please ensure the outdoor and indoor antenna have distance of 20

5.Accessories
SelectionOutdoor antenna use 7 unit yagi type antenna, indoor antenna use board or rooftop antenna and signal wire use coaxial-cable.
6.Packing list
Main unit 1pc
Power supply 1pc
User manual 1pc
