Waterproof 3528 Smd Led Strip Light, Rex1000 Dc12v Ip65 Led Flexible Strip Light For Outdoor

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

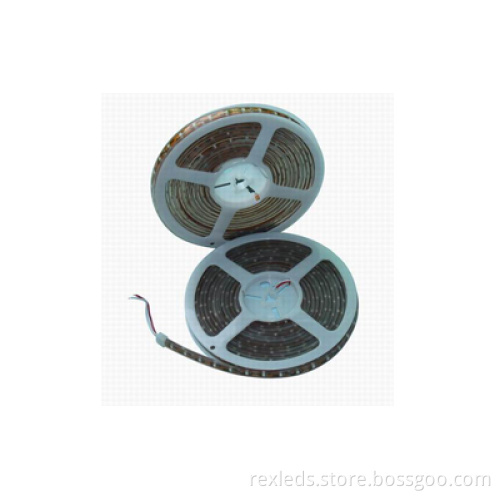

Waterproof 3528 SMD LED Strip Light, REX1000 DC12V IP65 Led Flexible Strip Light For Outdoor

Specification

Waterproof 3528 SMD LEDs flexible strip for outdoor using.

Size	100082mm
LED Type	3528 SMD LED
LED No	60 pcs LED per meter Beam angle150Degree
Voltage	Input DC12V
Current	20mA		20mA	20mA	20mA	20mA
Watts	4.8w		4.8w	4.8w	4.8w	4.8w
Lumen	186 lm		132lm	186 lm	132 lm	132 lm
Life	50, 000hrs
Cable	-White/+Grey		-W/+Blue	-W/+Green	-W/+Yellow	-W/+Red
Color	White		Blue	Green	Yellow	Red
Certificate	CE:BTRE0708181359/RoHS:BTRS0708310889.SGS: MIC-QIP-AS072113
IP	IP65
Part No	REX1000- 60W3528-WP	REX1000- 60B3528-WP		REX1000- 60G3528-WP	REX1000- 60Y3528-WP	REX1000- 60R3528-WP

Application

1. Architectural decorative lighting and backlighting for homes, hotels, marketplaces, bars etc

2. Auditorium walkway lighting, indoor illuminated signs and advertisements

3. Illumination lighting using walkway, canopy, stairway accent lighting, amusement park

4. Car interior lights

5. Channel letter lighting using for stores, restaurants, bars

Item Number: REX1000-60X3528-WP(X-White/red/blue/green/yellow)

REX1000-60X3528-WP adopts 60pcs of 3528 SMD LED as its light source. It is made of flexible copper board. There are five colors available. Each 3 LEDs as one unit can be cuttable to get your desired length which can be connected by wires.

Features

1. This product adopts a kind of super flexible PCB as base which makes soldering points is steady. The 3528 SMD LEDs are evenly arranged on the board.

2. Every three LEDs as one unit can be cuttable

3. Self-adhesive 3M label in the back, fix it firmly as your requirement.

4. The 3528 SMD LED have high intensity, large viewing angle, good quality.

5. The PCB size can be custom-made according to the customer’s requirement

6. End of strip is soldered with flying leads for customer wiring use.

7. 5 meters per roll.

8. Each 5 meters need 12vdc and 50watts of transformer.
