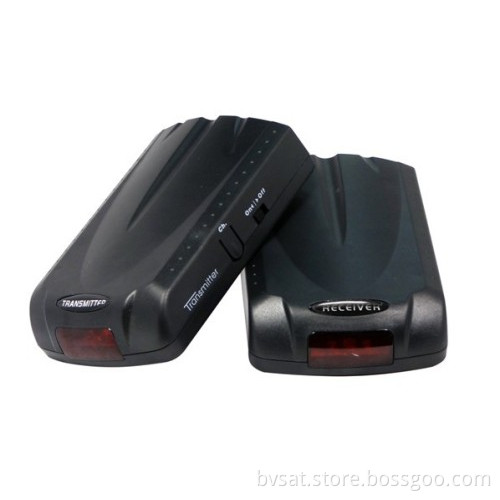

product name: Digital 2.4 GHz Wireless AV sender with IR Extender

* With 4 selectable channels(Tact Switch)
* Transmit the crisp A/V signal with radio frequency
* Compact size
* All antennas(2.4GHz&433MHz) are embedded into housing inside
* Remote control the A/V source with IR extender
* NTSC/PAL video format available
* Compatible with Camcorder or CMOS camera application



Hd digital wireless av sender
wireless A/V transmitter & receiver! The product consists of a transmitter and a receiver. It adopts an advanced 2.4GHz wireless transmission scheme and has the advantages of a long transmission range, strong anti-interference and high mobility. It can transmit AV signals of DVD, DVR, CCD camera, IPTV, satellite STB, digital TV STB and other similar devices, by means of radio waves and receive them at distant end and input them to a TV set to be displayed. It enables you to easily realize wireless sharing of HD AV data and enjoy untrammeled hi-fi audio and visual effects.

ITEM 205T 205R
2.4GHz antenna Internal Omni-directional antenna Internal Omni-directional antenna
433MHz antenna External omni-directional antenna External Omni-directional antenna
Transmit power 10 dBm(Typical)  –
Sensitivity  –85dBm type
Frequency band 2.400~2.4835GHz 2.400~2.4835GHz
Channel Customer 4 selectable channels
2414, 2432, 2450, 2468 MHz
4 selectable channels
2414, 2432, 2450, 2468 MHz
Frequency Stability ±100 KHz(Typical)
L.O Stability ±100 KHz(Typical)
Input format Available in NTSC or PAL
Output format Available in NTSC or PAL
Video input level 1 Vp-p@75Ω
Audio input level 1 Vp-p@600Ω
Video output level 1 Vp-p@75Ω
Audio output level 1 Vp-p@600Ω
Input / output Connector RCA RCA
Operating condition Indoor usage recommend Indoor usage recommend
Remote control frequency 433.92MHz 433.92MHz
IR carrier frequency 32~38KHz 32~38KHz
Power Consumption 9Volt DC, 90mA(Typical) 9Volt DC, 90mA(Typical)
Operating Temperature -10℃ ~ +60℃ -10℃ ~ +60℃
Dimension/Weight 145*92*40 mm
Carton Size/ Quantity 45*38*33 cm     /            15 PCS
