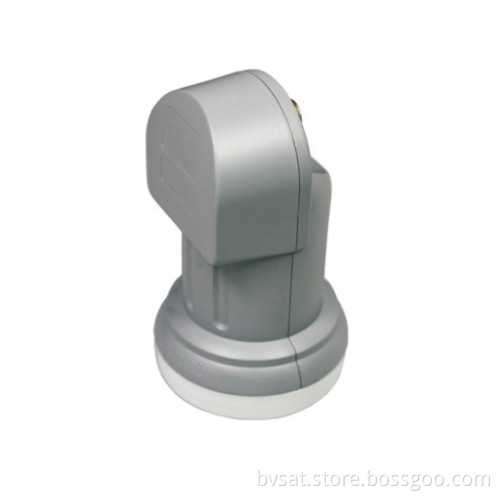

Product Name: Free to air KU band single LNBF
Feature:
Linear Standard.
single outputs.
Low 0.4 dB noise figure.
40mm feed diameter.
2 Year Manufacturer Warranty
Model name: LK11B
Specification:
Feature:
Linear Standard.
single outputs.
Low 0.4 dB noise figure.
40mm feed diameter.
2 Year Manufacturer Warranty
Model name: LK11B
Specification:
ITEM |
LK11B |
Input RF Frequency Range |
Low Band: 10.7 - 11.7GHz;High Band: 11.7 - 12.75GHz |
Output Frequency Range |
Low Band: 950 - 2050MHz;High Band: 1100 - 2150MHz |
Noise Figure |
0.7dB(TYP) 1.2dB(max) |
Conversion Gain |
55dB(TYP) @25℃50dB(min) |
Output Power |
0dB (Min.) |
Output Return Loss |
8.0dB(2.3:1) |
F/D Ratio |
0.6 |
Input Reflector Type |
Offset |
Image Rejection |
40 dB (Min.) |
Cross Pol. discrimination |
20 dB (Typ.) |
Gain Flatness |
4.5dB(Over Band ) |
L.O. Frequency |
Low Band: 9.75GHz;High Band: 10.6GHz(or 10.75GHz) |
L.O. Stability |
±1.0MHz@25℃ ;±3.0MHz @-40℃~ +60℃ |
L.O. Phase Noise |
-40dBc/Hz (1kHz Offset)
-60dBc/Hz (10kHz Offset)
-80dBc/Hz (100kHz Offset)
|
Polarization Selection |
V : 11~14V DC; H : 16~19V DC |
D.C. Current Consumption |
120mA(TYP) 150mA(Max) |
Output Connector |
75ΩF type female |
Operating Temperature |
-30 ℃to +60 ℃ |
Dimension |
60*60*115 mm |
Carton Size/ Quantity |
62*32*25 cm / 100 PCS |
