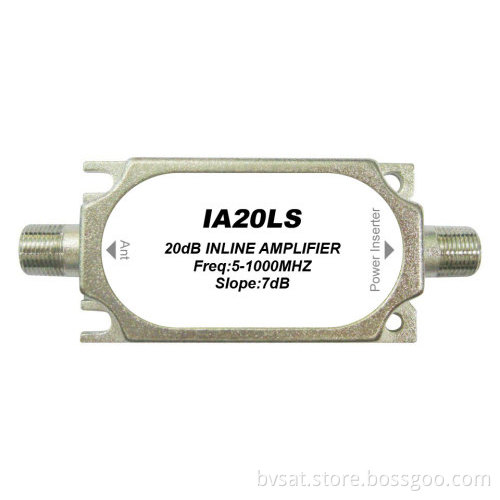

Product Name: Signal slop gain 5-1000 MHz 20 dB inline amplifier
Model Name: IA20LS
Feature:
Model Name: IA20LS
Feature:
20 dB Gain, frequency: 5MHz-1000MHz
Boost Weak TV/Cable Signals over Long Cable Runs
Powered by the receiver via coaxial cable
Design for in line boosting of SAT IF signal
Models with slop gain can equilibrate for cable loss
Low inter-modulation distortion
500mA power pass for LNB operation requirement
Output level test according to EN50083-3 or -5
Screening factor: Compliant to Class B
Zinc die-casting housing, nickel-plated.
Powered by the receiver via coaxial cable
Design for in line boosting of SAT IF signal
Models with slop gain can equilibrate for cable loss
Low inter-modulation distortion
500mA power pass for LNB operation requirement
Output level test according to EN50083-3 or -5
Screening factor: Compliant to Class B
Zinc die-casting housing, nickel-plated.
| ITEM | Typical | ||||||
| Frequency response | 5-1000 MHz | ||||||
| Gain | 20 dB | ||||||
| Noise Figure | 5 dB | ||||||
| Return Loss | 8 dB | ||||||
| Output Level | SAT: 110@ 35 dB IMA3; Terr.: 105 @ 65 dB IMA3 | ||||||
| Power supply | 13-18V DC, 40mA |
