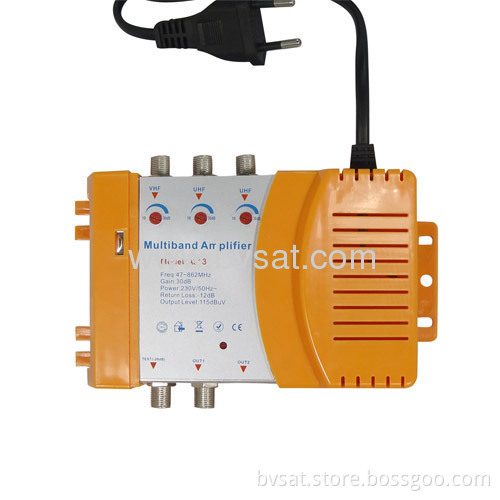

Multiband 47-862 Mhz 30 Db Gain Vhf & Uhf Signal Amplifier

Product Name: Multiband 47-862 MHz 30 dB Gain indoor VHF&UHF signal amplifier

This is a highest quality Professional VHF TV linear amplifier module broadband from 175 MHz- 225 MHz. This amplifier needs only 3 mW RF power for 2 W output. Power supply requires DC voltage 8 V /1.5 A. Extremely linear this amplifier has been made for small TV stations and studios. It is ideal as an exciter for high power TV stages. Amplifier comes assembled and tested. Warranty one year is included. A highest quality PC board is double sided and silver plated.



                                                        Model Name: A313

Feature:

Indoor VHF/UHF Amplifier

3 input and 2 output

Excellent quality tinplate housing and exquisite plastic case shell attached, making

Excellent quality component, professional amplification design and high gain

External 20V 2000mA DC power offering more stable operation

Gain adjustable slope control to equalize output and optimize signal reception

Signal output to next cascading stage via amplification

Red LED for power

Easy installation

specification:

ITEM				Typical
Frequency response				47-862 MHz
Gain				30 dB
Noise Figure				5 dB
Return Loss				- 12 dB
Output Level				SAT: 110@ 35 dB IMA3; Terr.: 105 @ 65 dB IMA3
Power supply				230V/50Hz/3W
