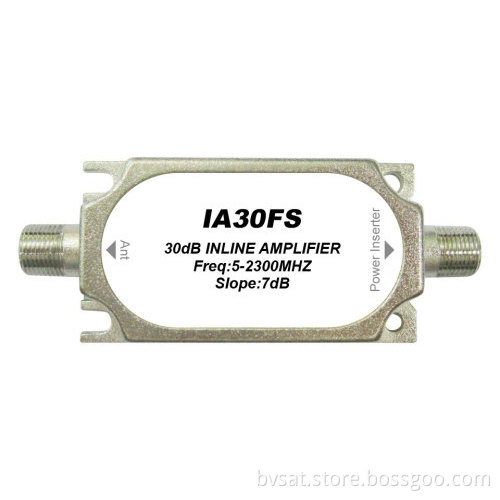

Professional 5-2300 Mhz 30 Db Gain Inline Amplifier

30 dB Gain, frequency: 5MHz-2300MHz

Boost Weak TV/Cable Signals over Long Cable Runs
Powered by the receiver via coaxial cable
Design for in line boosting of SAT IF signal
Models with slop gain can equilibrate for cable loss
Low inter-modulation distortion
500mA power pass for LNB operation requirement
Output level test according to EN50083-3 or -5
Screening factor: Compliant to Class B
Zinc die-casting housing, nickel-plated.

ITEM				Typical
Frequency response				5-2300 MHz
Gain				30 dB
Noise Figure				5 dB
Return Loss				8 dB
Output Level				SAT: 110@ 35 dB IMA3; Terr.: 105 @ 65 dB IMA3
Power supply				13-18V DC, 40mA
