Big Smatv System 17in Satellite Trunk Distribution Amplifier
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
big SMATV system 17in satellite trunk distribution amplifier
High quality design
low power consumption
energy save technology
Sheet metal housing with plastic holder.
High quality design
low power consumption
energy save technology
Sheet metal housing with plastic holder.

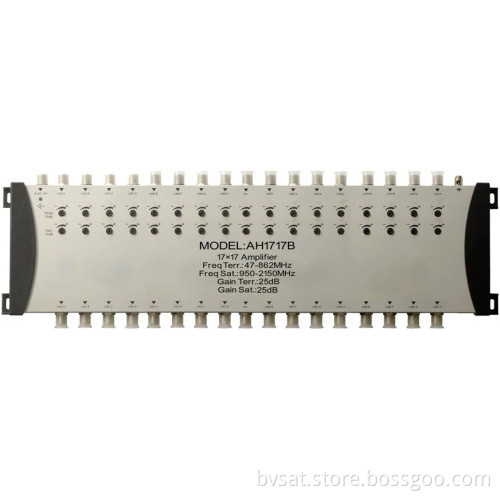

Model: AH1717B
| ITEM | TYPICAL | REMARK | |||||
| Frequency response | 47-2150MHz | ||||||
| Inputs | 16SAT+1 Terr | F connectors | |||||
| Outputs | 16SAT+1 Terr | F connectors | |||||
| Gain | Terr 47-862MHz | 15dB | |||||
| Sat 950-2150MHz | 25dB | ||||||
| Adjustment Range | Terr 47-862MHz | 0~15dB | Gain | ||||
| Sat 950-2150MHz | 0~15dB | Gain | |||||
| Adjustment Range | Terr 47-862MHz | 0~10dB | Slope | ||||
| Sat 950-2150MHz | 0~10dB | Slope | |||||
| Rejection | Terr/sat 47-862MHz | 30dB | |||||
| Sat/Terr 950-2150MHz | 30dB | ||||||
| Return Loss | Terr input 47-862MHz | -10dB | |||||
| Terr output 47-862MHz | -10dB | ||||||
| Sat input 950-2150MHz | -10dB | ||||||
| Sat output 950-2150MHz | -10dB | ||||||
| Output level | Sat (IMA3 35dB) EN50083-3 | 108dBμV | |||||
| Terr (IMA3 60dB) EN50083-3 | 100dBμV | ||||||
| Switching Adapter | 18V 1.2A | Optional | |||||
