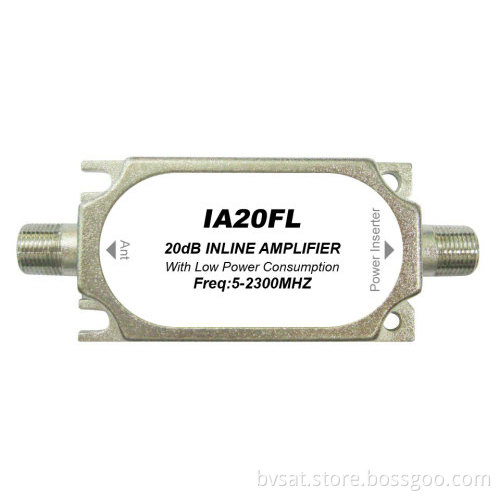

In-line Satellite Distribution Amplifier

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

product name In-line Satellite Distribution Amplifier

ITEM Typical

   Frequency response 5-2300 MHz

   Gain 20 dB

   Noise Figure 5 dB

   Return Loss 8 dB

   Output Level SAT: 110@ 35 dB IMA3; Terr.: 105 @ 65 dB IMA3

   Power supply 13-18V DC, 40mA

Features:

1. Sheet metal housing, F-connector.

2. Top-quality electronic components, professional circuit design with low insertion loss and high isolation.

3. 16 Sat and 1 Terr signal amplified with Gain adjustable and Slope adjustable.

4. 2 years warranty.

5. External power supply.

Zinc die-casting housing, nickel-plated.

Design for in line boosting of SAT IF signal

Models with slop gain can equilibrate for cable loss

Low intermodulation distortion

20 dB Gain with low power consumption

500mA power pass for LNB operation requirement

Output level test according to EN50083-3 or -5

Screening factor:Compliant to Class B
