47-2150mhz 5in Cascade Satellite Trunk Distribution Amplifier

Product Name: 47-2150MHz 5in cascade satellite trunk distribution amplifier

Feature:
High power line amplifier in cascades
Gain and slope adjustable
Enabling or disabling of current to LNB
Easy installation.
               :

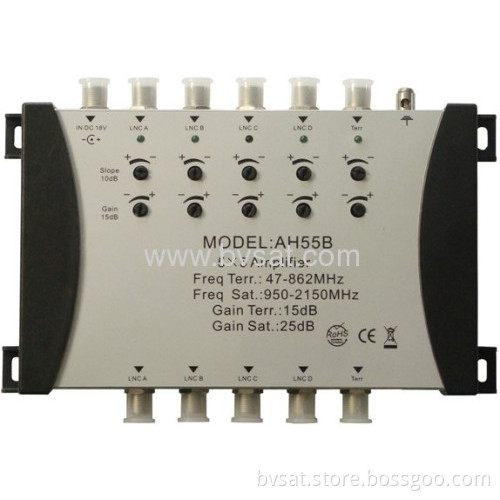

                                                                                          Model: AH55B


Specification

ITEM				TYPICAL		REMARK
Frequency response				47-2150MHz
Inputs				4SAT+1 Terr		F connectors
Outputs				4SAT+1 Terr		F connectors
Gain		Terr      47-862MHz		15dB
		Sat      950-2150MHz		25dB
Adjustment Range		Terr      47-862MHz		0~15dB		Gain
		Sat      950-2150MHz		0~15dB		Gain
Adjustment Range		Terr      47-862MHz		0~10dB		Slope
		Sat      950-2150MHz		0~10dB		Slope
Rejection		Terr/sat      47-862MHz		30dB
		Sat/Terr      950-2150MHz		30dB
Return Loss		Terr input         47-862MHz		-10dB
		Terr output       47-862MHz		-10dB
		Sat input        950-2150MHz		-10dB
		Sat output      950-2150MHz		-10dB
Output level		Sat (IMA3 35dB) EN50083-3		108dBμV
		Terr (IMA3 60dB) EN50083-3		100dBμV
Switching Adapter				18V 1.6A		Optional
