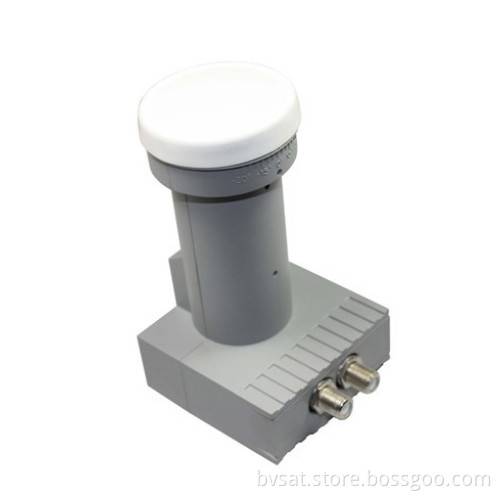

Ku-band Twin Output Universal Satellite Lnb

Product name: KU-Band Twin output Universal Satellite LNB


                                                Model Name: LK21D

Feature:
Twin output LNB.
For individual and multi-satellite systems.
Input frequency range from 10.70 GHz ~ 12.75 GHz.
Output frequency range from 950 MHz ~ 2150 MHz.
Various input frequency range and L.O. for world-wide market.
Low phase noise for analogue or digital reception.
Voltage-controlled H/V switching (13/18 V)
Excellent D.R.O. stability
Compact tooling
Best solution for individual and multi-satellite systems

Specification:

ITEM	LK21D
Input RF Frequency Range	Low Band: 10.7 - 11.7GHz;High Band: 11.7 - 12.75GHz
Output Frequency Range	Low Band: 950 - 2050MHz;High Band: 1100 - 2150MHz
Noise Figure	0.5dB(TYP)   1.0dB(max)
Conversion Gain	60dB(TYP) @25℃55dB(min)
Output Power	0dB (Min.)
Output Return Loss	8.0dB(2.3:1)
F/D Ratio	0.6
Input Reflector Type	Offset
Image Rejection	40 dB (Min.)
Cross Pol. discrimination	20 dB (Typ.)
Gain Flatness	4.5dB(Over Band )
L.O. Frequency	Low Band: 9.75GHz;High Band: 10.75GHz
L.O. Stability	±1.0MHz@25℃ ;±3.0MHz @-40℃~ +60℃
L.O. Phase Noise	-40dBc/Hz (1kHz Offset) -60dBc/Hz (10kHz Offset) -80dBc/Hz (100kHz Offset)
Polarization Selection	V : 11~14V DC; H : 16~19V DC
D.C. Current Consumption	150mA(TYP) 180mA(Max)
Output Connector	75ΩF type female
Operating Temperature	-30 ℃to +60 ℃
Dimension	60*100*125 mm
Carton Size/ Quantity	52*32*27 cm      /   50 PCS
