Low Power Consumption 20db Inline Signal Boosting Amplifier

Powered by the receiver via coaxial cable
Design for in line boosting of SAT IF signal
Models with slop gain can equilibrate for cable loss
Low inter-modulation distortion
500mA power pass for LNB operation requirement
Output level test according to EN50083-3 or -5
Screening factor: Compliant to Class B
Zinc die-casting housing, nickel-plated.

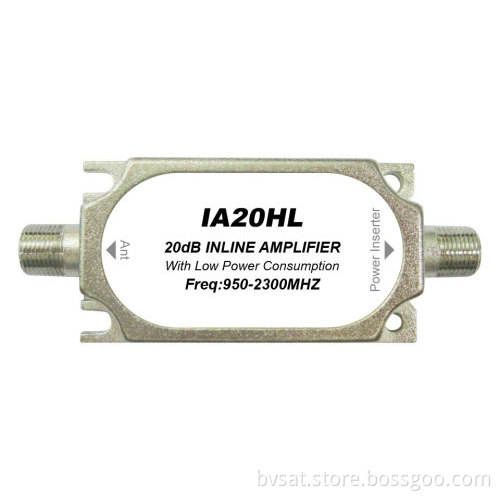

                                                                                                                                           Model: IA20HL

ITEM				Typical
Frequency response				950-2300 MHz
Gain				20 dB
Noise Figure				5 dB
Return Loss				8 dB
Output Level				SAT: 110@ 35 dB IMA3; Terr.: 105 @ 65 dB IMA3
Power supply				13-18V DC, 40mA
