Brand New Stand-alone 2x4 Multiswitch For Satellite Receiver

SH24B switches are the most reliable switches on the market. We have load tested this switch with over 3 times the current draw rating and hot patched over 1000 cycles, which blew every other of the competition's switches leaving them dead ...... SH24B switches kept reliably switching for thousands of cycles under this tremendous load!

Featrues:
2 satellite IF inputs for 4 satellite receiver
2 satellite IF inputs selected by 13V\18V signal
Low insertion loss, high isolation and return loss
SAT-IF-PATHs to the subscribers are active and supplied by the receiver
Built in Amplifiers
Sheet metal housing with plastic holder
Design good for indoor usage
Specifications
Specifications                    Item		Typical	QC Limit	Remark
Frequency Range		SAT:950~2150MHz
Inputs		2 SAT		F connectors
outputs		4 Receiver		F connectors
Insertion Loss		0dB	2dB
Return Loss		12dB	10dB
Isolation	H/V	30dB	25dB
	REC-REC	35dB	30dB
Switching commands		13V                        18V
Switching Voltage		V:10~14.5V      H:15.5~20V
Power supply		Power supplied from Receiver
Impedance input/output		75Ω
Dimensions (L,W,H)		128×108×43		mm

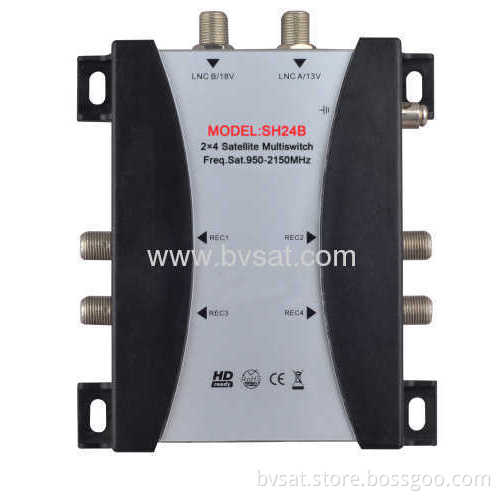

Picture show:



Packing show:



Container show:
