All World Popular Stand-alone Multiswitch Satellite Model 2x6

Product name:All world popular stand-alone multiswitch satellite model 2x6

·Brand-new heavy-duty switch with over 16 yrs manufacturing history and wide popularity among European FTA community.

·Bigger and sturdier, designed for extreme weather condition. Insertion loss is 1.5db. Rated as most reliable and durable switch among North America and Europen FTA community.

·Compatible with all DVB cards, Coolsat, Pansat, Fortec Star, Digiwave, Dreambox, Blackbird FTA receivers, and many more...

·Compatible with all DiSEqC protocols, i.e. 1.0, 1.2, 1.3, 1.6, 2.0...

·Allow you to connect 6 lines of satellite signals to your receiver

·Allow remote units to report their possible and actual configuration

Specifications
Specifications                    Item		Typical	QC Limit	Remark
Frequency Range		SAT:950~2150MHz
Inputs		2 SAT		F connectors
outputs		4 Receiver		F connectors
Insertion Loss		0dB	2dB
Return Loss		12dB	10dB
Isolation	H/V	30dB	25dB
	REC-REC	35dB	30dB
Switching commands		13V                        18V
Switching Voltage		V:10~14.5V      H:15.5~20V
Power supply		Power supplied from Receiver
Impedance input/output		75Ω
Dimensions (L,W,H)		128×108×43		mm

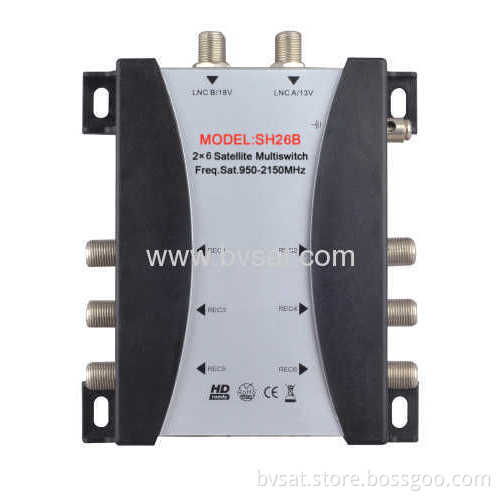

Products show:
