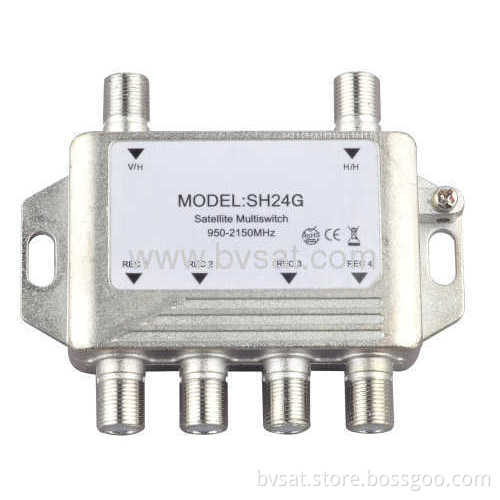

High-efficiency Mobile Satellite Tv Stand-alone 2x4 Series Multiswitch

Product name: high-efficiency mobile satellite TV stand-alone 2x4 series multiswitch

Introduce:

For distributing four satellites signals in small and medium size installations. Each

user receives both satellite and terrestrial signal by only one coaxial cable and any

satellite polarisation can be selected from each user's receiver.

Featrues:
2 satellite IF inputs for 4 satellite receiver
2 satellite IF inputs selected by 13V/18V signal
Low insertion loss, high isolation and return loss
SAT-IF-PATHs to the subscribers are active and supplied by the receiver
Zinc die cast housing, nickel plated
Design good for indoor usage
Specifications
Specifications                    Item		Typical	QC Limit	Remark
Frequency Range		SAT:950~2150MHz
Inputs		2 SAT		F connectors
Outputs		4 Receiver		F connectors
Insertion Loss	SAT	2dB	4dB
Return Loss	SAT	12dB	10dB
Stop band attenuation	SAT	25dB	20dB
Isolation	H/V	30dB	25dB
	REC-REC	30dB	25dB
22KHz Frequency Range		22 ± 2KHz
Vp-p		650 ± 250mV
Switching Voltage		V:10~15V     H:16~20V
Dimensions (L,W,H)		88×72×16		mm

The other related product:



                                                                         Model NO.SH26F



                                                                   Model NO.SH28F



                                                                                 Model NO.SH28G
