High-efficiency Dish Network Equipment Sat Tv 2x8 Multiswitch

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

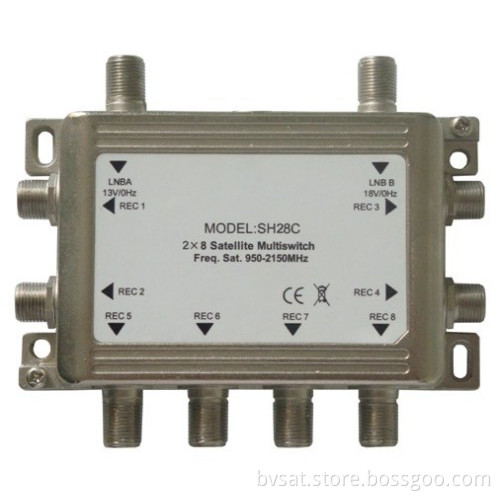

Product name: high-efficiency dish network equipment sat TV 2x8 multiswitch

Featrues:

2 satellite IF inputs for 8 satellite receiver

2 satellite IF inputs selected by 13V\18V signal

Built-in amplifier, no need any power adapter supporting

Low insertion loss, high isolation and return loss

SAT-IF-PATHs to the subscribers are active and supplied by the receiver

Zinc die cast housing, nickel plated

Design good for indoor usage

Specifications

Item Typical QC Limit Remark

Frequency Range SAT:950~2150MHz

Inputs 2 SAT F connectors

Outputs 8 Receiver F connectors

Insertion Loss 4dB 5dB

Return Loss 12dB 10dB

Isolation REC-REC 35dB 30dB

H/V 30dB 25dB

Switching Voltage V:10~14.5V H:15~20V

Dmensions (w,d,h) 120×92×21 mm

Packing info:

Send your message to this supplier

* From:
* To:

Mr. Johnny Ho
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Network Equipment , Dish , Equipment , TV , Dish Antenna , Soap Dish

Featrues:
2 satellite IF inputs for 8 satellite receiver
2 satellite IF inputs selected by 13V\18V signal
Built-in amplifier, no need any power adapter supporting
Low insertion loss, high isolation and return loss
SAT-IF-PATHs to the subscribers are active and supplied by the receiver
Zinc die cast housing, nickel plated
Design good for indoor usage

Specifications
Item		Typical	QC Limit	Remark
Frequency Range		SAT:950~2150MHz
Inputs		2 SAT		F connectors
Outputs		8 Receiver		F connectors
Insertion Loss		4dB	5dB
Return Loss		12dB	10dB
Isolation	REC-REC	35dB	30dB
	H/V	30dB	25dB
Switching Voltage		V:10~14.5V H:15~20V
Dmensions (w,d,h)		120×92×21		mm
